Time & Attendance and Access Control Terminal-Granding technology

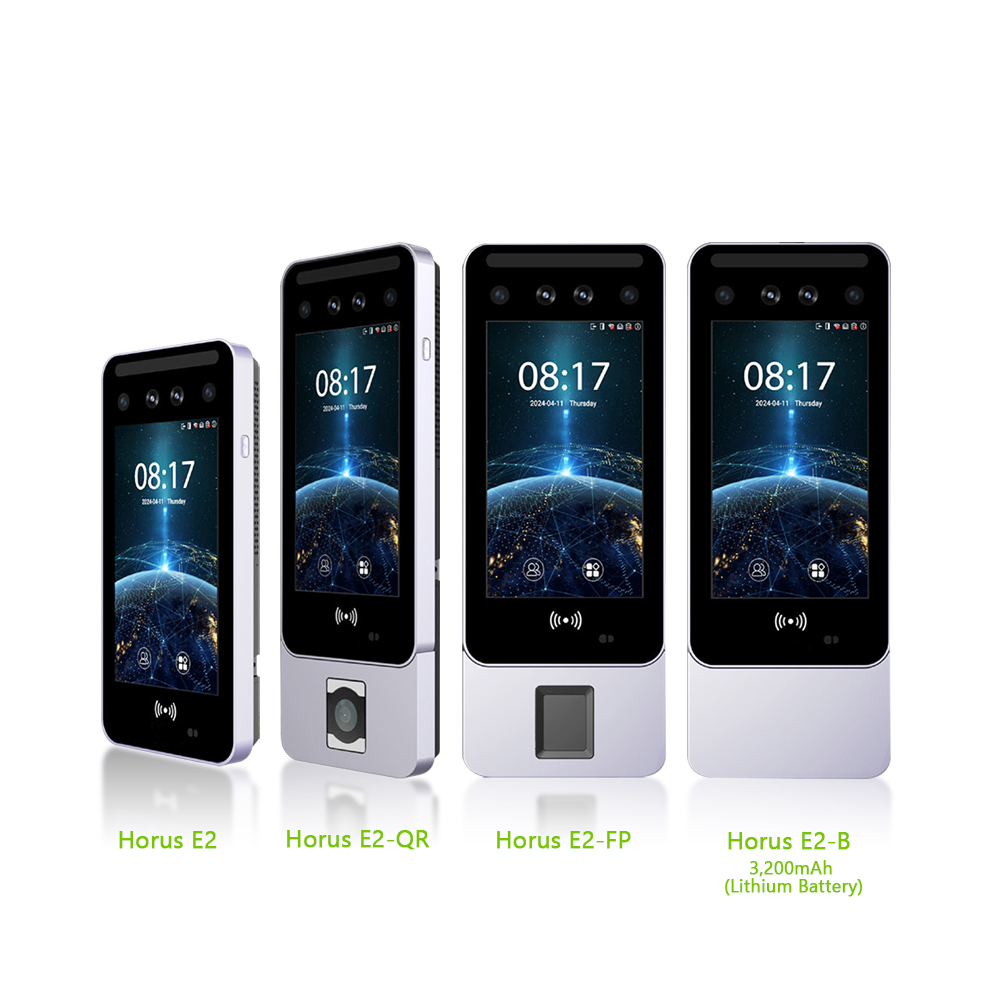

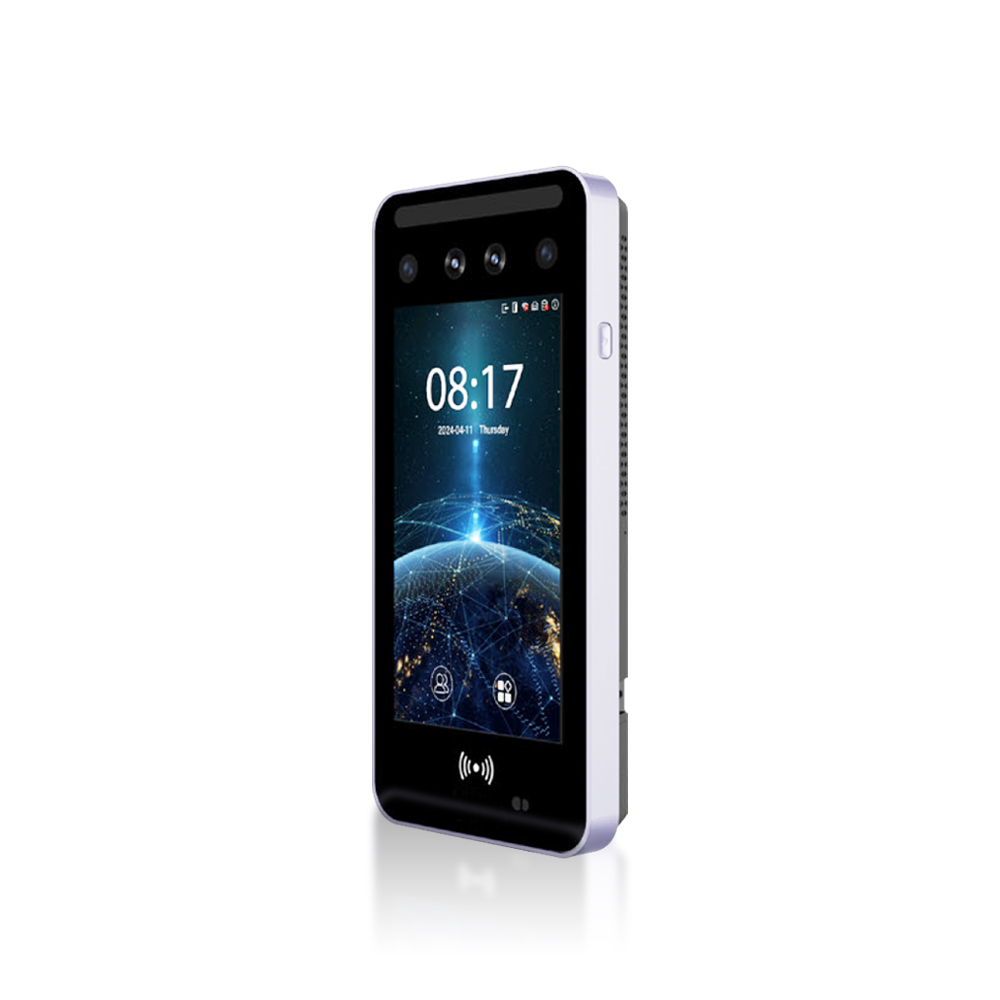

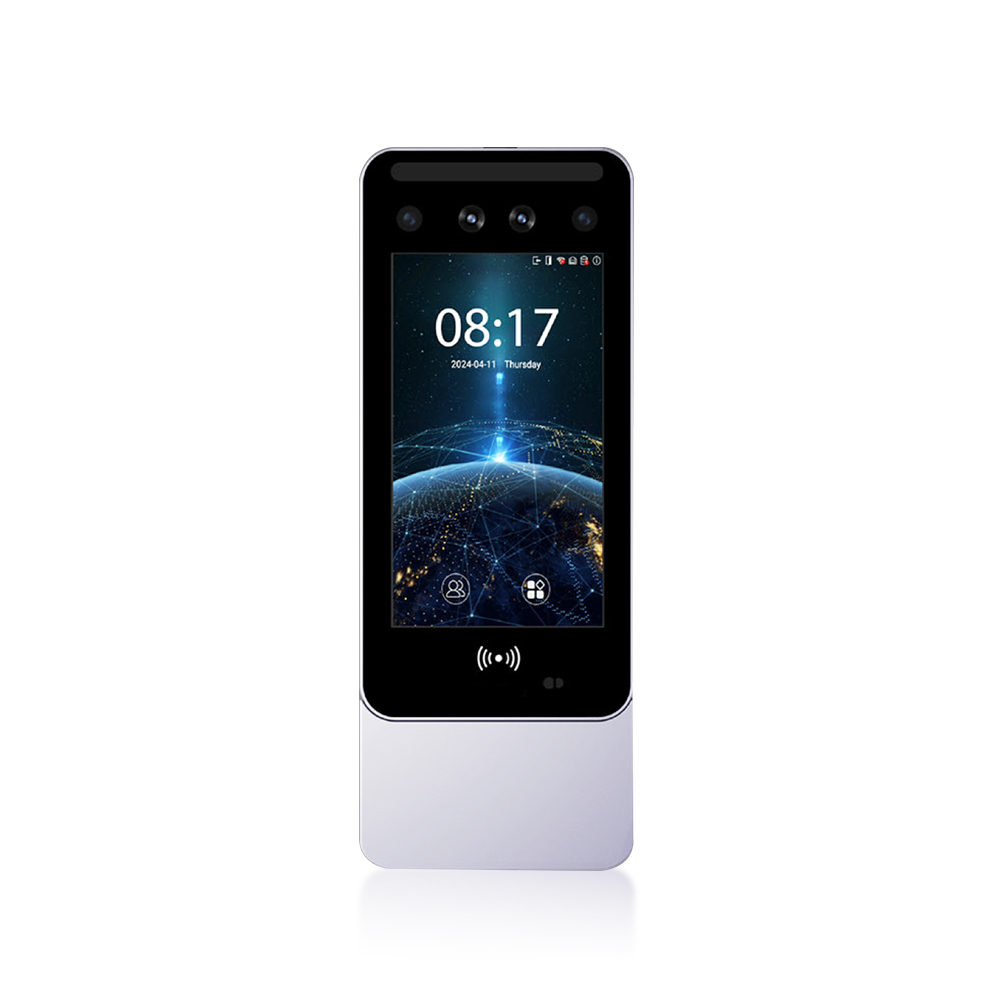

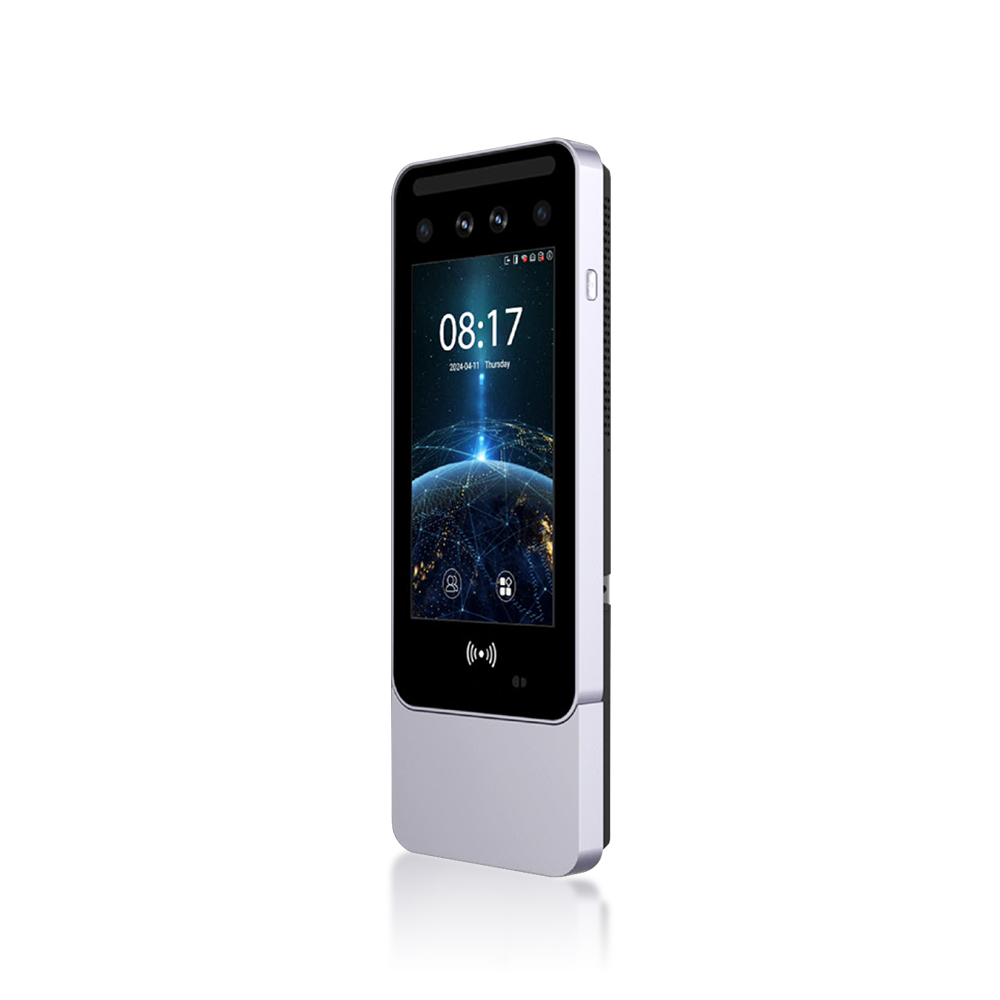

Horus E2

Android-based Biometric Terminal for
T&A and Access Control

Horus E2 is an Android-based multi-biometric terminal designed to support a variety of authentication methods, including facial recognition, fingerprint scanning, multi-tech card authentication, and QR code scanning. These features cater to the diverse needs of users in various environments. Additionally, it features an optional removable backup battery, enhancing its reliability and making it an ideal solution for temporary site management.

Product detail

♦ 3,200mAh lithium battery (optional).
♦ Supports LTE, Wi-Fi, TCP/IP, and Bluetooth 4.1.
♦ Supports facial recognition, fingerprint scanning, RFID card and PIN entry.
♦ Supports dual-frequency (125kHz and 13.56MHz) card module (standard).
♦ Ensures encryption of all biometric data and personal information transfers, meeting the AES-256 standard.

Model	Horus E2
Display	5" @ TFT Color Touch LCD Screen (720*1280)
Camera	Dual Camera @ 2MP
Operation System	Android 10.0
Hardware	CPU: Octa-core @ 2.0 GHz RAM: 2GB; ROM: 16GB Speaker: 7ohm @1.14W Sensitivity: -36 dB/ Omni-directional/ Signal-to-Noise Ratio: 60 dB/ Impedance: 2.2K Supplement Light: Yes
Authentication method	Face / Card / Password (Virtual Keypad)/ Fingerprint (Optional)
Face Capacity	20,000(1:N)
Card Capacity	50,000(1:N)
User Capacity	50,000
Transaction Capacity	200,000
Max. User Password Length	8 Digits
Biometric Authentication Speed	less than 0.5 sec (Fingerprint) less than 1 sec (Facial Authentication)
Touchless Biometric Authentication Distance	30 cm to 100 cm (Facial Authentication)
False Acceptance Rate (FAR) %	FAR_ 0.01% ( Visible Light Facial Authentication) FAR_ 0.0001% ( Fingerprint)
False Rejection Rate (FRR) %	FRR _ 0.02% ( Visible Light Facial Authentication) FRR_ 0.01% ( Fingerprint )
Biometric Algorithm	Face VX5622 Finger VX10.0
Card Type	ID Card@125 kHz & IC Card@13.56 MHz (Standard)

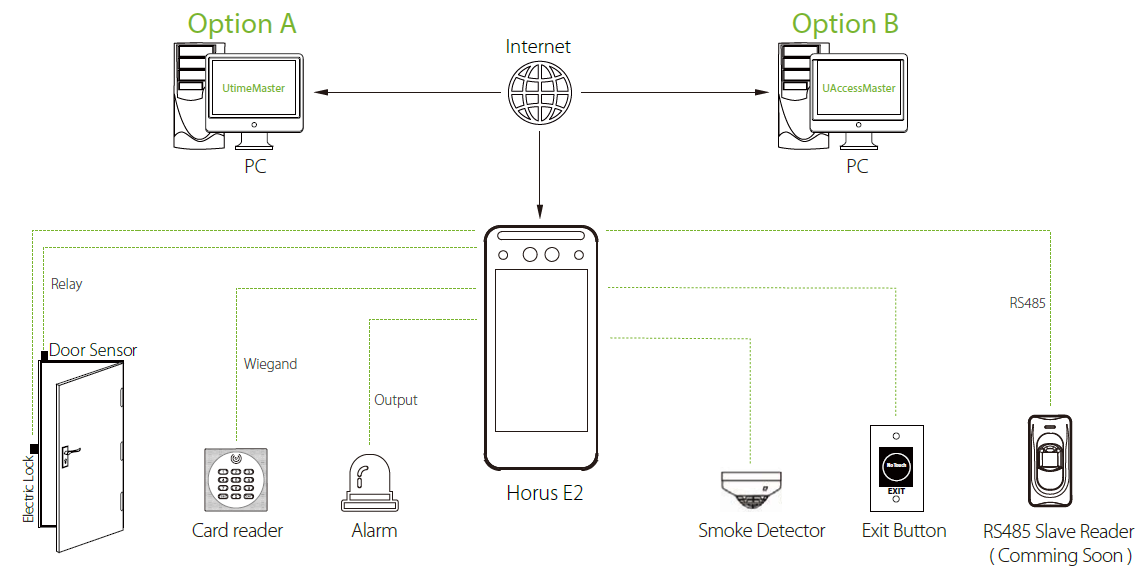

Communication	Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4 GHz & 5G GHz TCP/IP1, Bluetooth: BLE 4.1, Wiegand (Input & Output)1, RS485 1 Aux Inputs 1, Electric Lock1, Door Sensor1, Exit Button1, Alarm1
Mobile Communication	Support 4G, Support GSM/WCDMA/TDSCDMA/LTE/TDD GSM4, W(B1/2/4/5/8) ;TD(34/39) PRX(1/2/3/4/5/7/8/12/17/20/28AB/34/38/39/40/41) DRX(1/2/3/4/5/7/8/12/17/20/38/39/40/41)
Standard Functions	ADMS, Photo Capture, Event Photo Capture, Holidays, Anti-Passback, Schedule Bell, Record Query, Tamper Switch Alarm, Multiple Authentication Methods, AC Push and TA Push Protocol Switch, T9 Keyboard (Input)
Access Control Interface	RS485 ( RS485 Card Reader / Biometric Reader)
Supported Software	UtimeMaster/ UAccessMaster
Installation	Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Power Supply	DC 12V 3A
Operating Temperature	-10°C to 45°C
Operating Humidity	0% to 80% RH (Non-condensing)

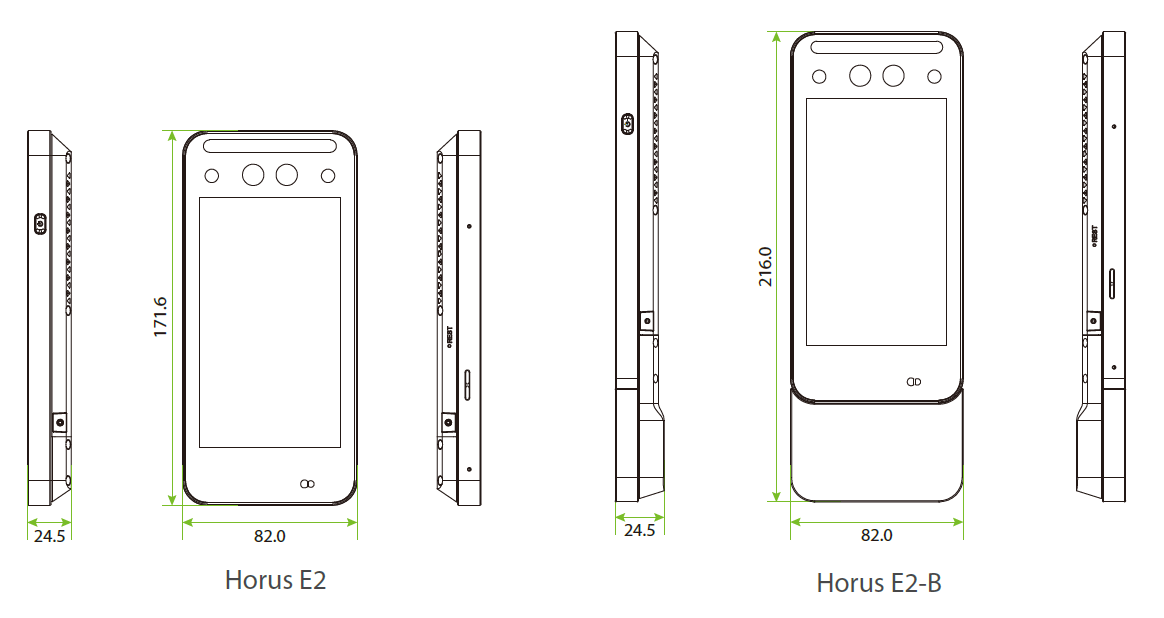

Dimensions	171.6mm * 82mm * 24.5mm (LWH)
Gross Weight	1.0 Kg
Net Weight	0.39 Kg
Certifications	CE, FCC, RoHS
