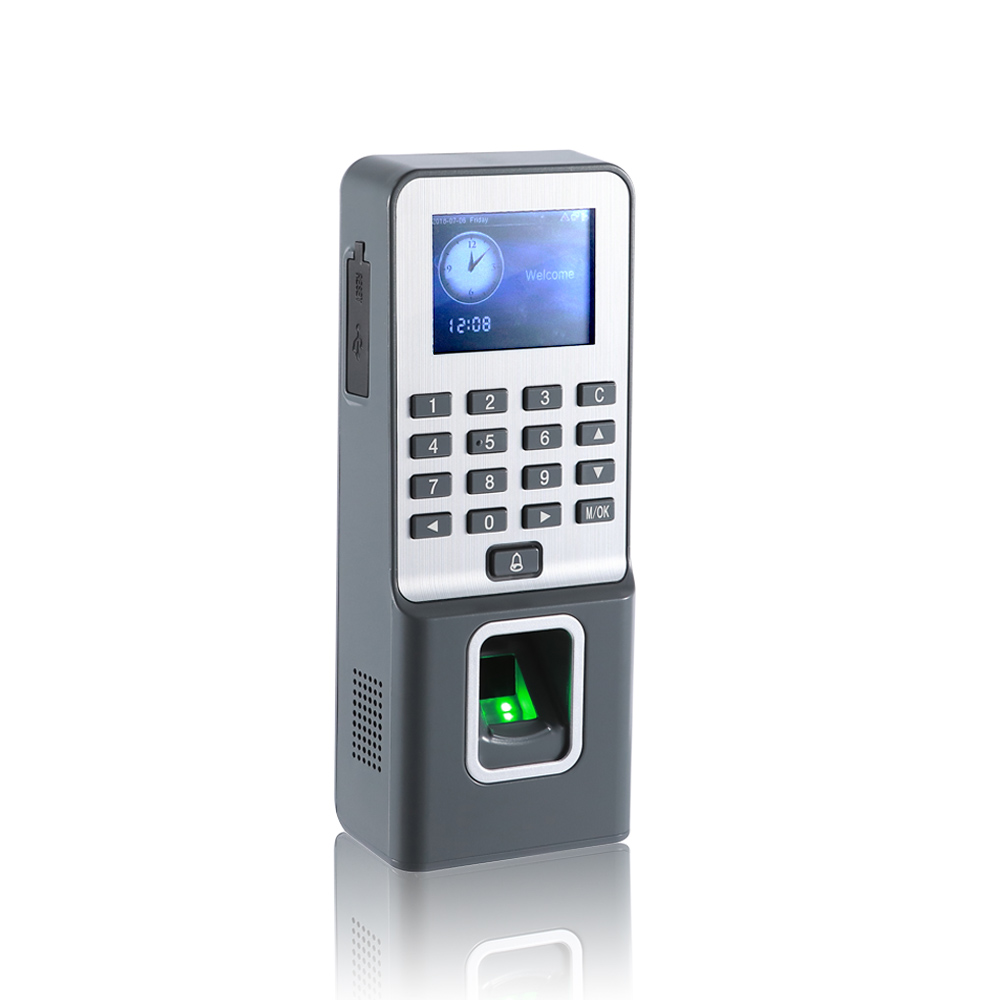

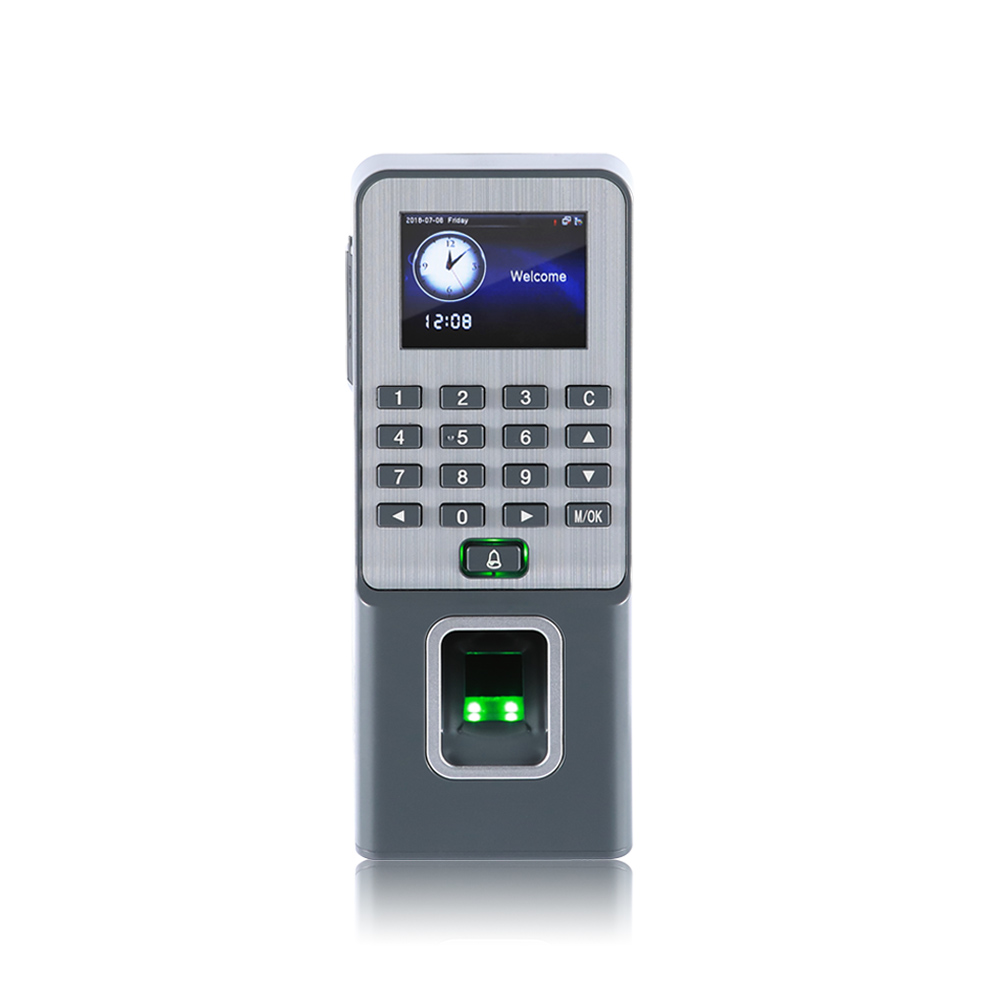

F09 Granding Fingeprint Time Attendance and Access Control System


The F09 is professional fingerprint access control system support 50 Time Zones, wired door bell connection, wiegand in and out, support to connect external reader, with slim size, and high performance.

Contact us

♦  Latest fingerprint algorithm with friendly user interface.

♦  Support TCP/IP, RS232/485, USB and wiegand in/output.

♦  Special user-role and fingerprint expired management.

♦  ID card /MIFARE card or HID card can be customized.

♦  Up to 66 user-defined schedule bell.

♦  Connect with slave reader easily.

♦  Easy to connect with Barcode reader.

Model F09
LCD Display 2.4” TFT LCD color screen
Speaker Voice prompt (language can be selected)
Capacity Fingerprint: 4,000;Logs: 100,000; Card: 10,000 (optional)
Verification Verification speed (1:1) ≤ 0.5S; Identification speed (1:1) ≤ 1S
Identification FRR ≤ 0.01%;  FAR ≤ 0.001%
Attendance status Check in/out, Break in/out, Overtime in/out
Communications TCP/IP, RS232/485, USB Host, Wiegand in/out
Language Multi language, more than 40 languages can be selected
Environment Operation temperature: 0°C-45°C;  Operation humidity: 20%-80%
Power Supply 110/220 VAC-12VDC (PS-3A is optional item)
Package data

Machine size: 19(L)*7.8(W)*4(H)cm

Unit packing: 25*15*9cm

Carton packing: 53*33*45cm

Real weight: 0.95kg

Volume weight: 1.0kg

Function support

Built-in relay, 50 time zones, 99 groups, 10 combinations, Alarm, Door senor, Door lock, DST, Workcode, Webserver, Photo-ID, Schedule bell, SMS, Auto-status, Anti-passback, Log query, 9 PIN user ID, Multi-verify, ADMS, T9, External siren

Customize Function

ID / Mifare / HID card reader, Print function, Barcode reader
