QR Code Access Control Card Reader

with Wiegand 26/34, RS485

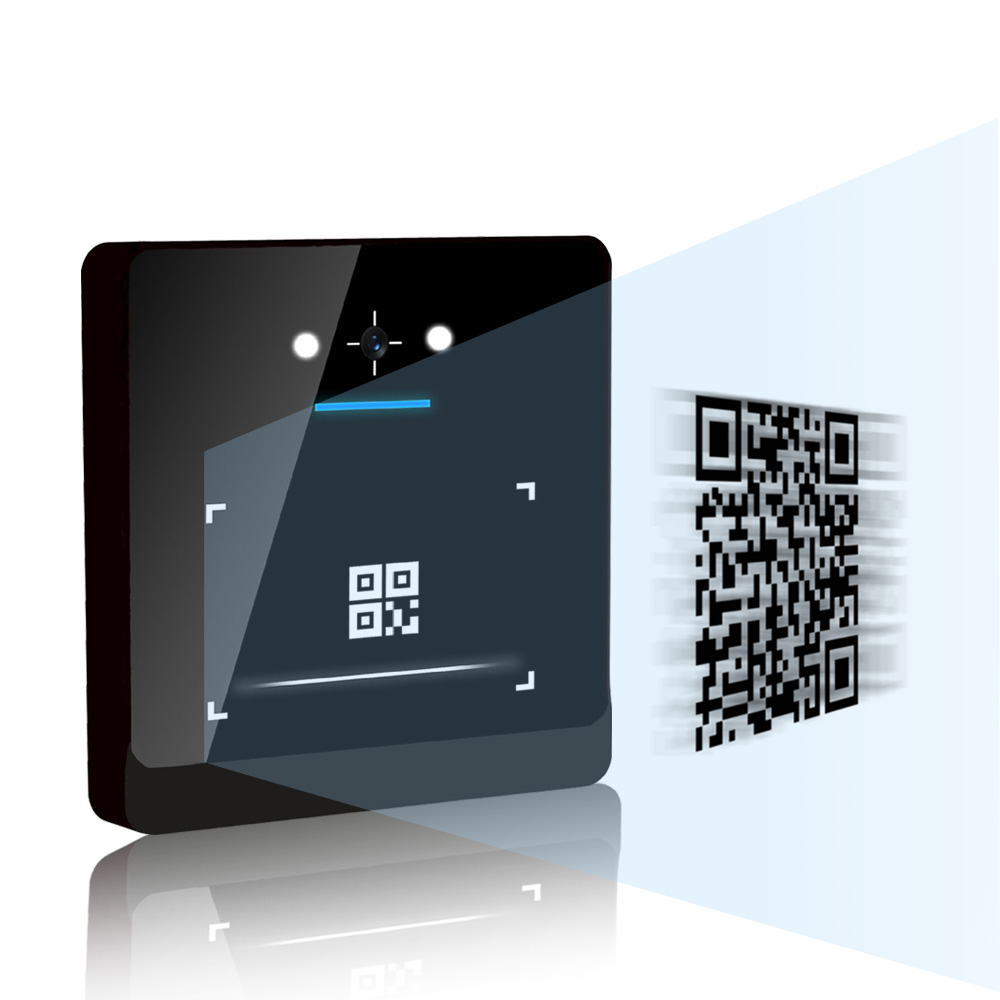

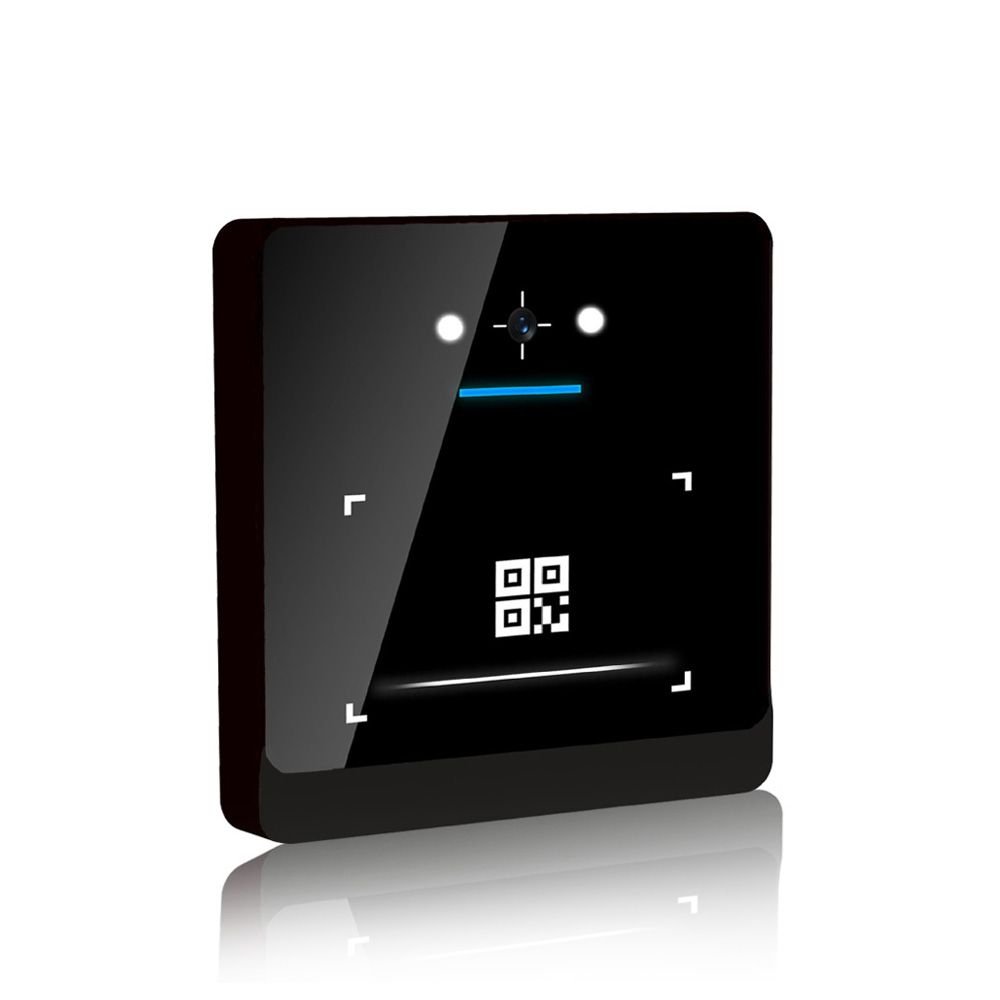

QR300 QR code access control card reader is a high-end smart access control card reader with a standard 86 structure and ABS material shell; the panel is made of 9H tempered glass, which has high scratch resistance and high explosion resistance; IPX7 waterproof internal potting and sealing treatment is comprehensive Waterproof; dual-lamp supplement light high-definition scanning has wide viewing angle, fast speed, high recognition rate, strong compatibility, and can be connected to any brand access controller that supports Wiegand/485 communication. Currently, it is widely used in commercial office buildings, real estate, scenic tourism, and communities Visitor access management, supporting gates, access control, visitor machines, smart homes, etc.


Contact us




QR code access control card reader

Output method

Wiegand 26/34 bits / RS485

Identification method

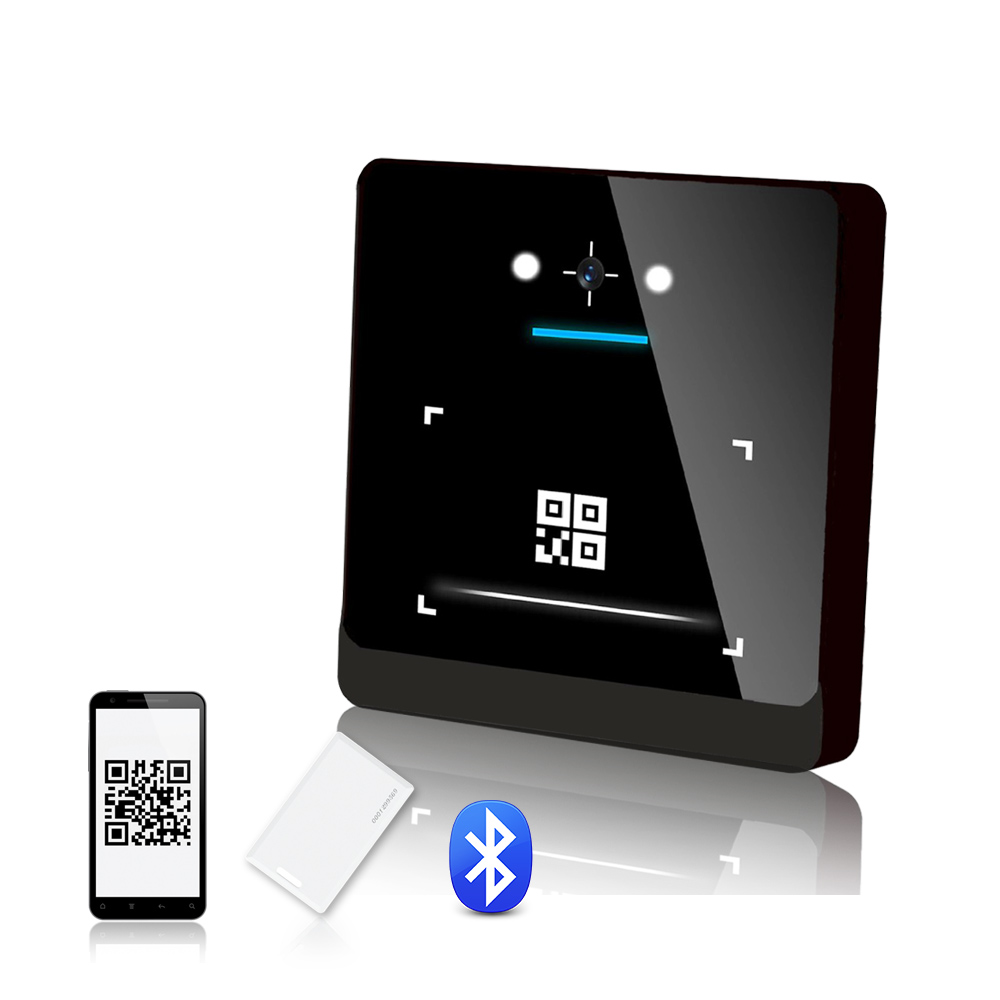

QR code/ Bluetooth/ IC card/ ID card/ NFC card (At the same time can support NFC,ID,QR code authentication)

Reading angle

Rotation angle 360°, elevation angle ± 65°, deflection angle ± 65°

Scanning angle

75°(horizontal), 55°(vertical), 85°(diagonal)

Support QR code format

QR Code, Data Matrix, PDF417, etc.

Bluetooth version


Store users


Operating temperature

-20°C to 60°C

Relative humidity

5% to 95%

Ambient light

Direct sunlight, micro light source at night

Read speed

<200 milliseconds

Input power

DC12V 500mA (support wide voltage 5~30V)

physical dimension

86*86*13 mm

Recognition distance

Standard distance 5~30 cm

QR code support range

Wiegand 26-bit support range (0-255), (1-65535);


Wiegand 34-bit support range 1-4294967295;


RS485 support range is 1024 characters
