SIP-Ready Multi-Biometric Access Control
Terminal with Video Intercom Capabilit
Contact us

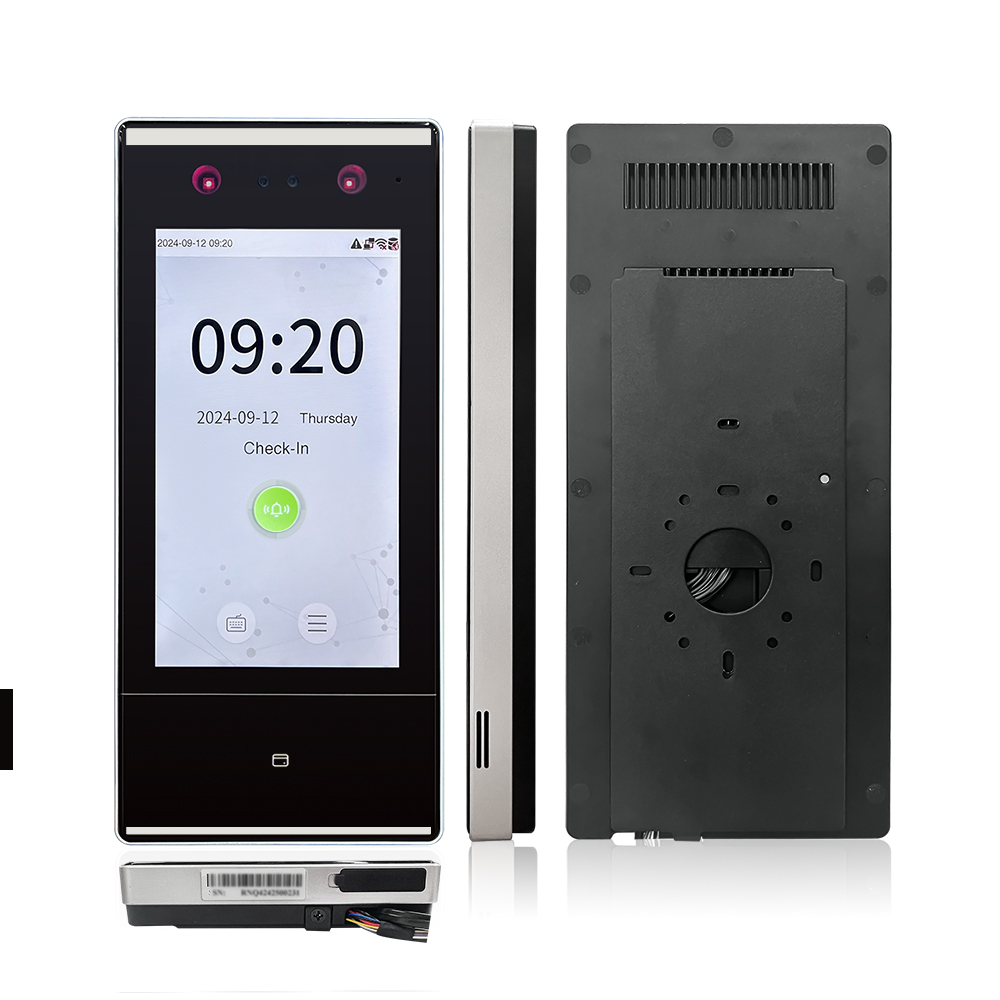

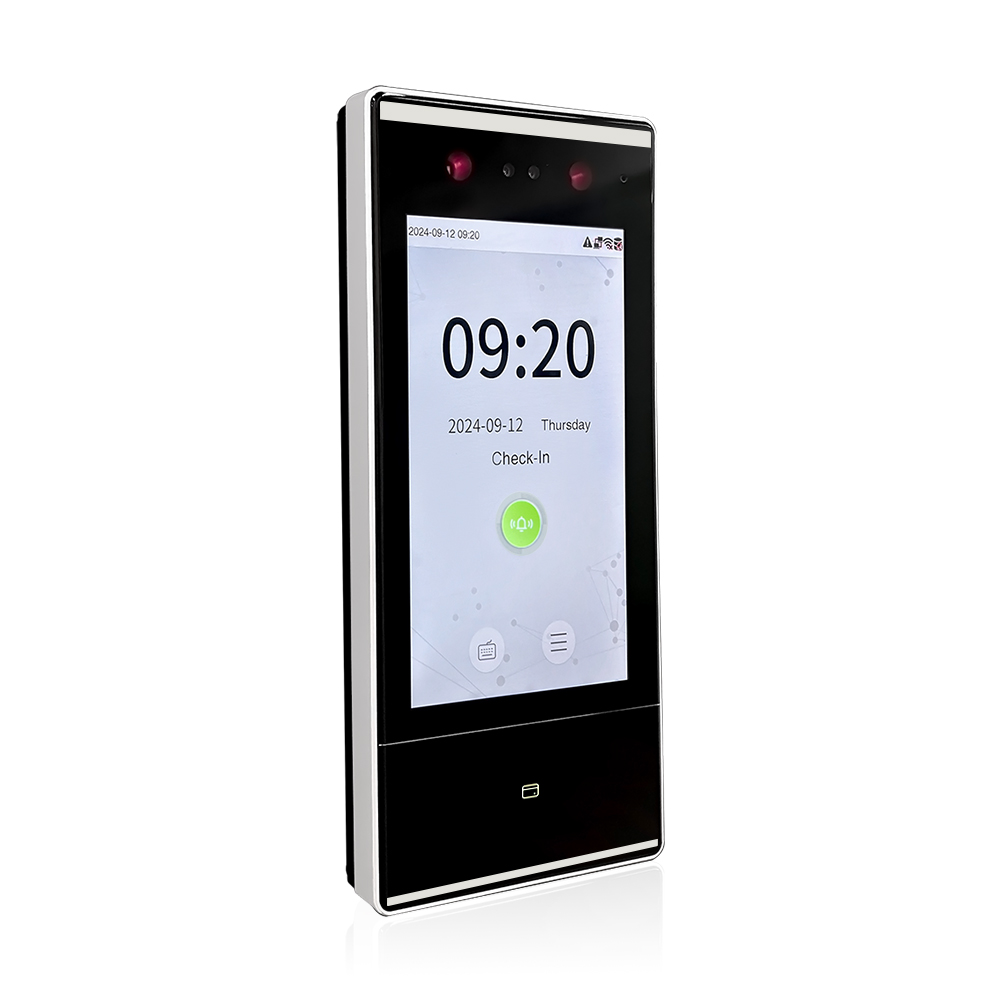

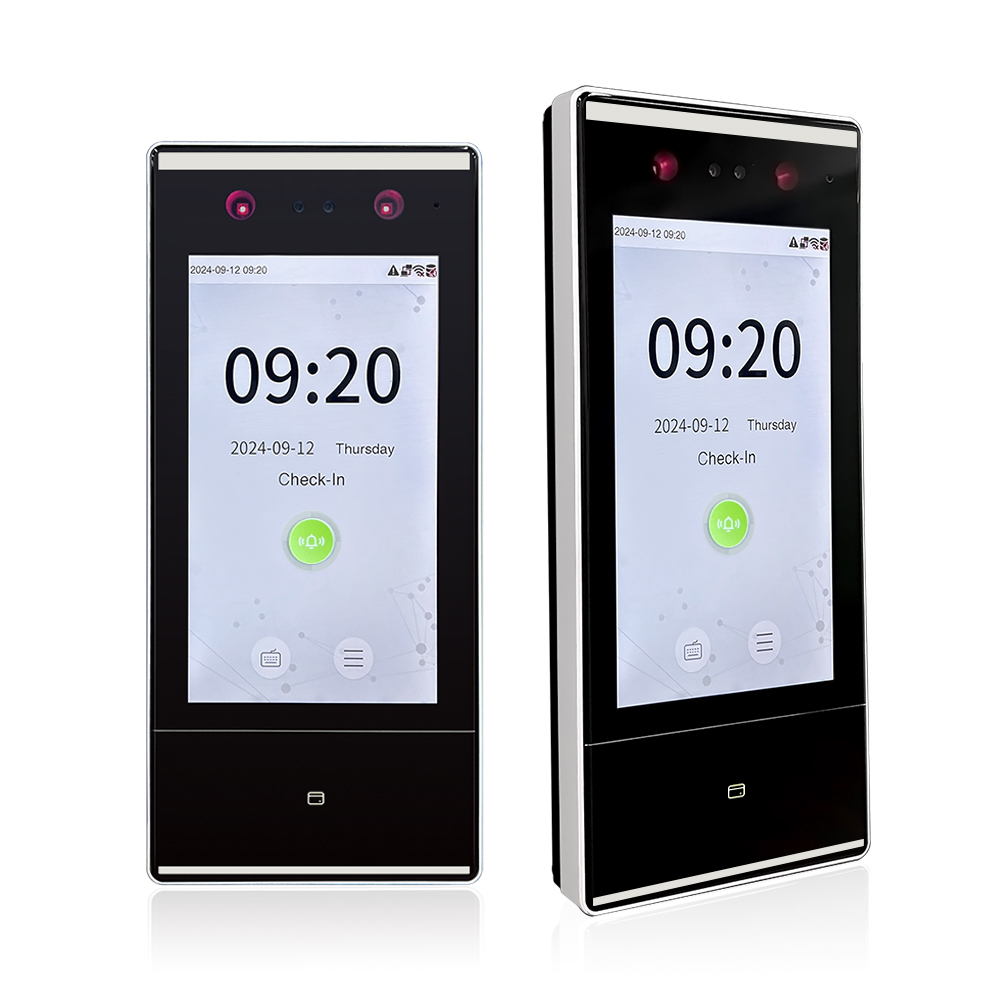

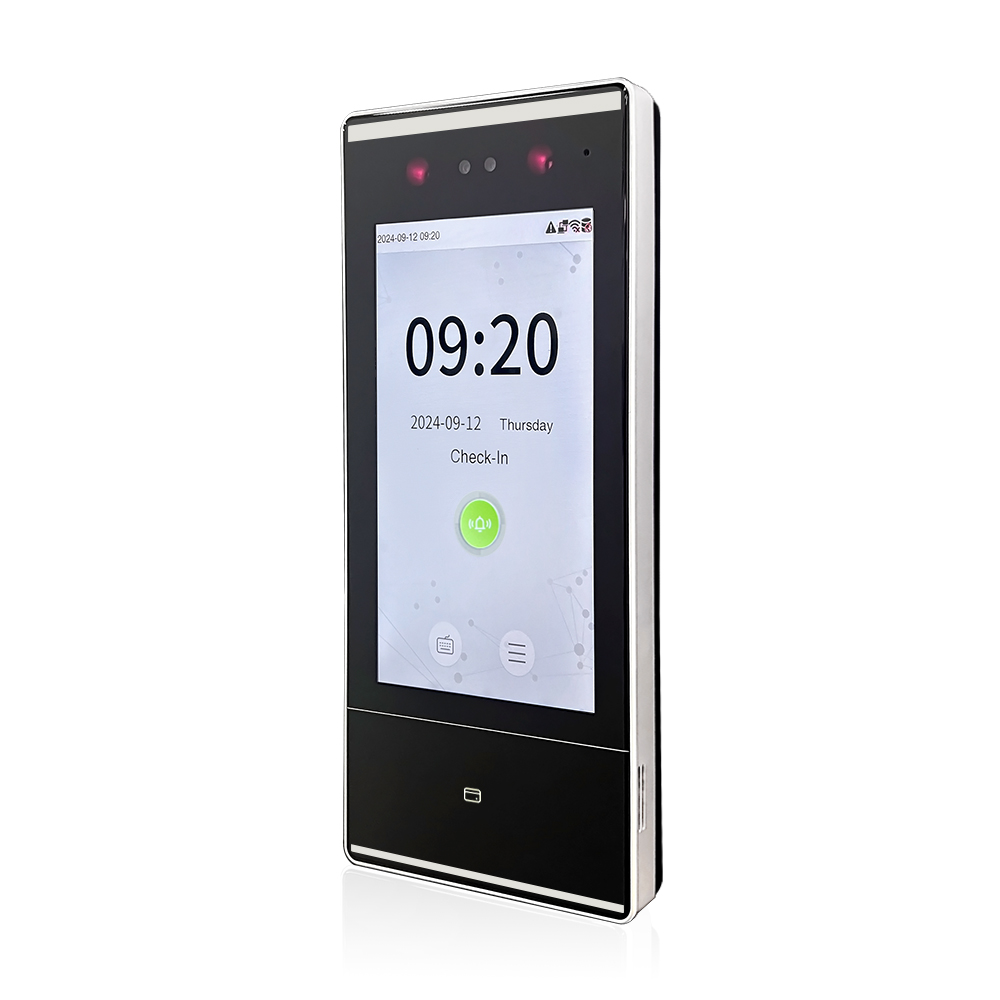

FA7000
♦ Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
♦ Attained IP65 Protection Rating With Dustproof and Waterproof
♦ Multiple Authentication Methods: Face / RFID / Password
♦ Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
♦ HD Video Door Phone Via SIP Protocol (optional).
♦ User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
♦ Compatible with wireless doorbell (optional)
♦ Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
|
Model |
FA7000 |
|
Display |
7" TFT Color Touch LED Screen (600*1024) |
|
Camera |
WDR Binocular Camera @ 1MP |
|
Operation System |
Linux |
|
Hardware |
CPU: Dual Core 1GHz, RAM: 512MB, ROM: 8GB Speaker: 8 ohm 1 W, Microphone |
|
Authentication method |
Face / Card / Password (Virtual Keypad) |
|
Face Capacity |
10,000 (1:N) |
|
Card Capacity |
50,000 (1:N) (Standard) |
|
User Capacity |
50,000 (1:N) (Standard) |
|
Transaction Capacity |
300,000 (1:N) |
|
Max. User Password Length |
8 Digits |
|
Biometric Authentication Speed |
less than 0.35 sec (Facial Authentication) |
|
Authentication Distance |
30cm to 200cm (Facial Authentication) |
|
False Acceptance Rate (FAR) % |
FAR ≤ 0.01% (Visible Light Facial Authentication) |
|
False Rejection Rate (FRR) % |
FRR ≤ 0.02% (Visible Light Facial Authentication) |
|
Biometric Algorithm |
Face V4.0 |
|
Card Type |
ID Card @ 125 kHz (Standard) IC Card @ 13.56 MHz (Optional) |
|
Communication |

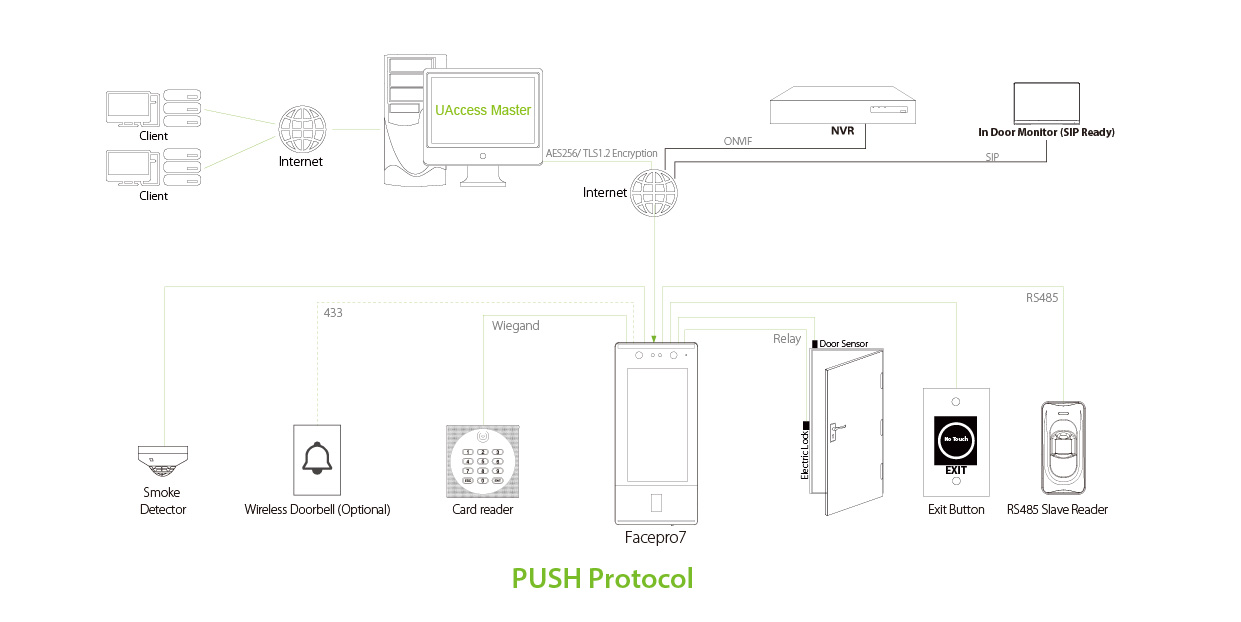

TCP/IP, Wi-Fi, Wiegand (Input or Output), RS485, USB: Type A (USB Drive Only), Aux Inputs , Electric Lock, Door Sensor, Exit Button, 12V Output |
|
Standard Functions |
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF(Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
|
Optional Functions |
IC Card, Wi-Fi, Wireless Doorbell |
|
Access Control Interface |
RS485 (RS485 Card Reader / Biometric Reader) |
|
Power Supply |
DC 12V 3A (Optional) |
|
Operating Temperature |
-5°C to 45°C |
|
Operating Humidity |
10% to 90% RH (Non-condensing) |
|

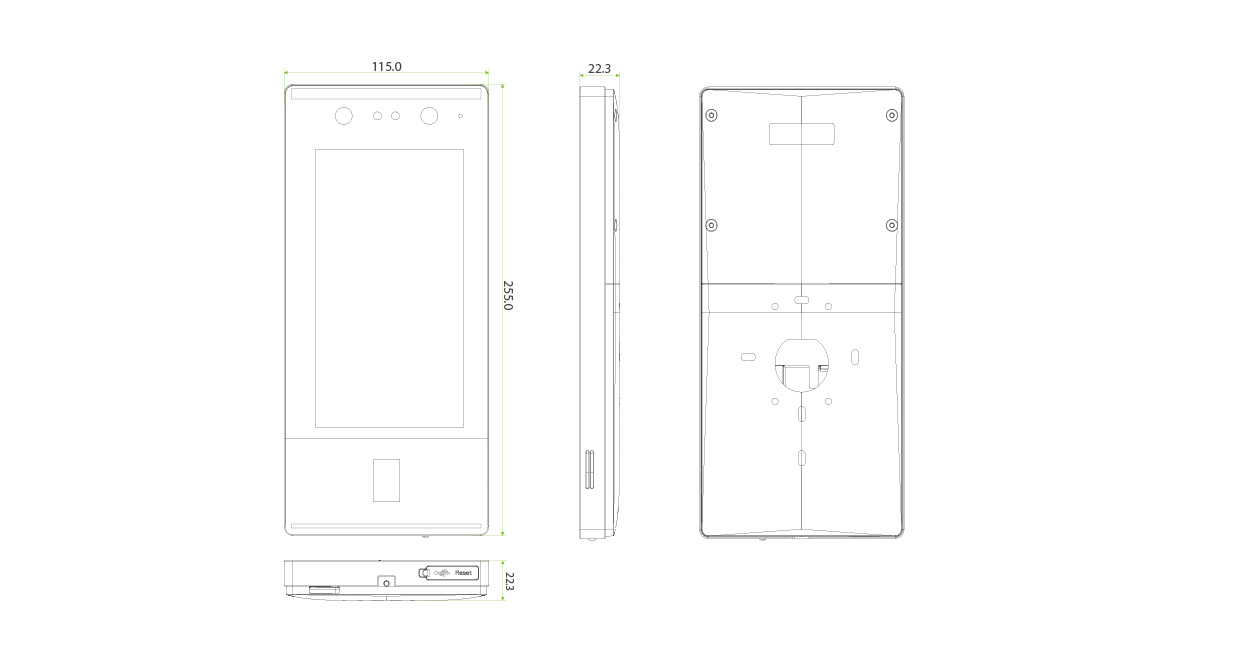

Dimensions |
255mm * 115mm * 22.3mm (L*W*H) |
|
Net Weight |
0.622 Kg |
|
Supported Software |
Software: UTime Master / UAccess Master |
|
Installation |
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
|
Ingress Protection Rating |
IP65 (waterproof and dustproof) |
|
Certifications |
ISO14001, ISO9001, CE, FCC, RoHS |
