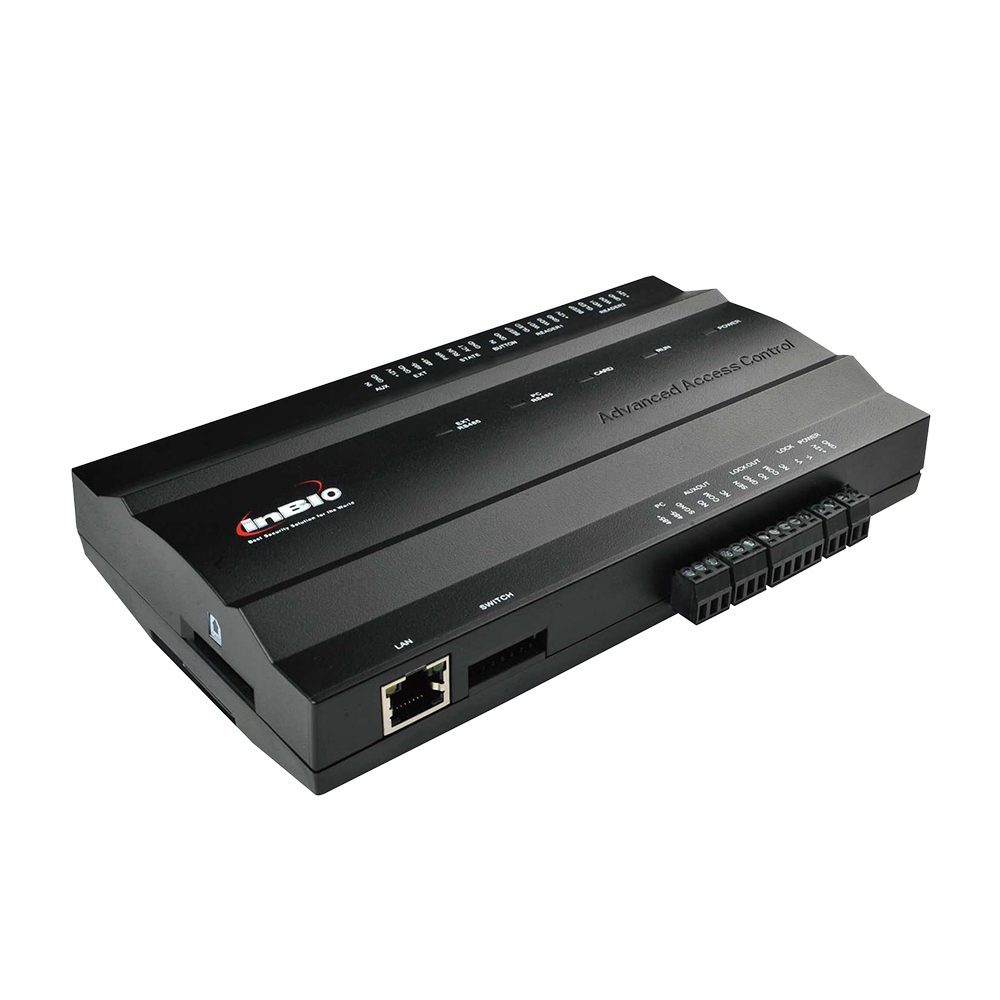

InBio160

InBio-series
IP-based Biometric
Door Access Control Panel

inBio is the most advanced access control panel which can provide biometric security for any door when connected with biometric readers and the software. These panels are versatile and can connect both FR series of fingerprint readers and KR series of RFID readers. These readers can be connected with RS485 or Wiegand connectivity to the panels.

Product detail

Truly Internal Biometric Identification

InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio via RS485 for fast and accurate matching with templates stored in the database. Wiegand inputs are also provided for traditional RFID readers.

Communication

InBio controllers can be installed easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modification of network parameters directly and easily.

Capacity

Support up to 3000 fingerprint templates, 30,000 badge users and store up to 100,000 events and transactions. Data is preserved if power is lost. Controller continues to operate if network connection is interrupted.

Lowest Total Cost of Ownership

Save cost. Controller firmwares can be upgraded without any advanced tools. New features can extend and expand the value of your investment.

More than Door Control

Access additional control and interface. After programming, auxiliary relays can be functioned as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed.

Options

InBio controllers come in 3 sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture.

Advanced Access Control Built-In

Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary input/output linkages are built into controller firmware.

Model	InBio160
Number of doors controller	1 Door
Numbers of readers supported	4(2 RS-485 Reader, 2 26-bit wiegand reader)
Types of readers supported	26-bit Wiegand and RS485 FR Series Reader
Number of Inputs	3(exi Device and Door Status, 1 AUX)
Number of Outputs	2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)
Card holders Capacity	30,000
Fingerprint Capacity	3,000 (optional 20,000)
Log Events Capacity	100,000
Communication	TCP/IP and RS-485
Package Dimension	350(L)×90(H)×300(W)mm
Package Weight	3.6kg
CPU	32 bit 400MHz CPU
RAM	32M
Flash Memory	128M
Power	9.6V-14.4V DC
Operating Temp	0-45 °C
Operating Humidity	20% to 80%
