Multi-Biometric Access Control and
Time Attendance Terminal
Contact us
S220
♦ 2.8-inch TFT Color Screen with intuitive graphical Ul for easy operation
♦ High verification speed
♦ Multiple Verification providing user various choices
♦ Support TCP/IP, WiFi
| Model | S220 |
| Cameras | High Definition Infrared Camera |
| Display | 2.8” TFT Screen |
| Speaker | Voice Prompt |
| Capacity | Face: 800 (1:N); Card: 6,000; Logs: 100,000 |
| Verification | Verification speed (1:1) ≤ 0.5S; Identification speed (1:N) ≤ 1S |
| Identification | FRR ≤ 0.01% FAR ≤ 0.0001% |
| Communication | TCP/IP, USB Host, WiFi |
| Attendance status | Check in/out, Break in/out, Overtime in/out |

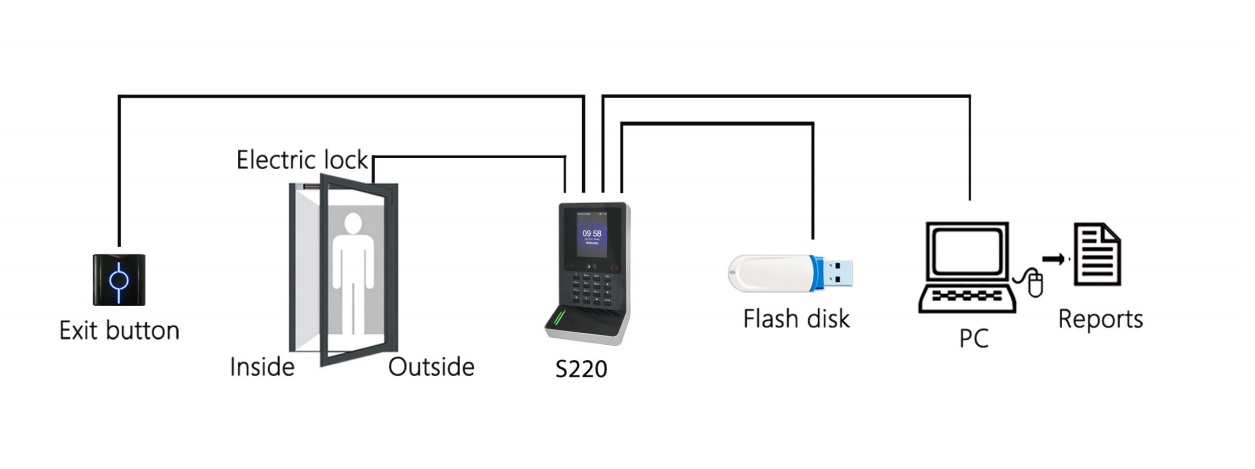

| Access control Interfaces | 3rd Party electric lock, Exit button |
| Language | Multi Language, English, French, Spanish, Arabic, Turkish, Portuguese, Hebrew etc. |
| Power Supply | 110/220 VAC-12VDC/1.5A |
| Environment | Operation temperature: 0°C-45°C ; Operation humidity: 20%-80% |
| Carton size | 141.7 x 101 x 130.5 mm |
| Function support | Scheduled bell, DLST, Self-inquiry, Workcode, T9 input, Webserver, Photo ID, ADMS, Multi-verify, Auto state |
| Optional Function | Mifare card reader, External siren |
