2MP Fixed Lens Eyeball IP Camera-Granding technology

GT-852E21C-S3-SE

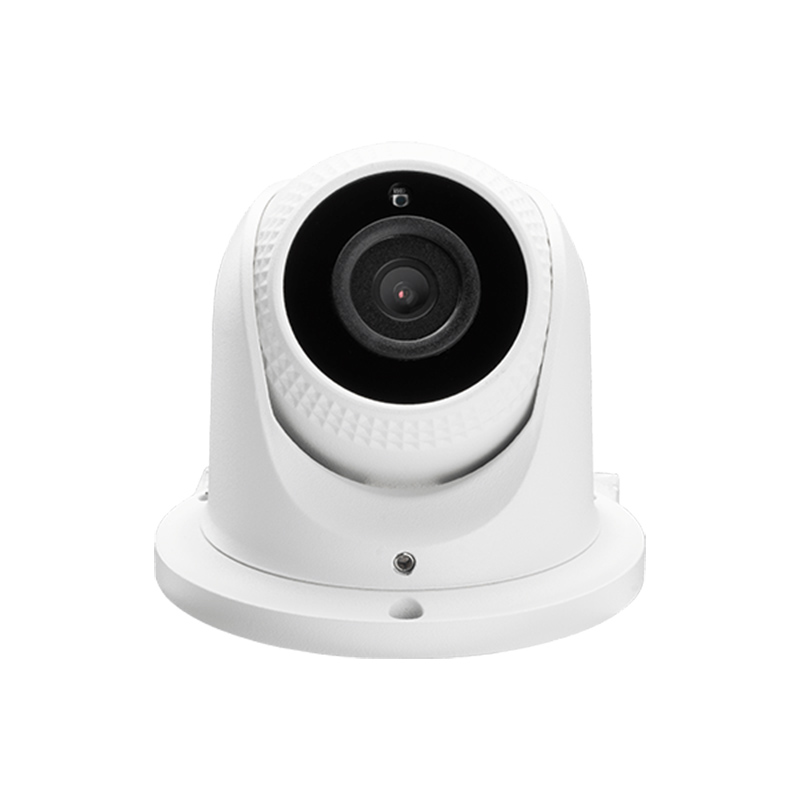

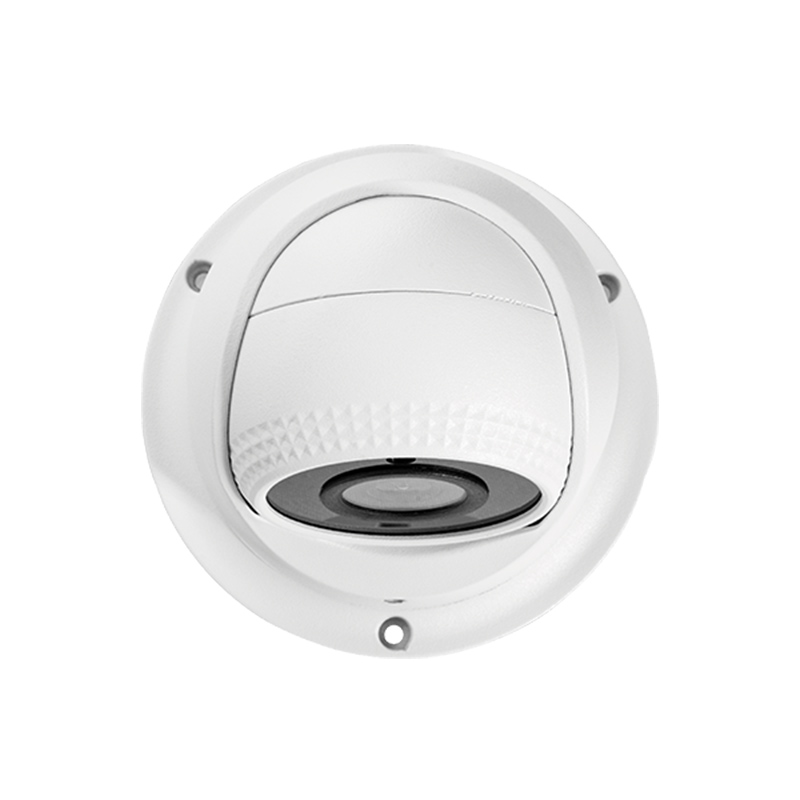

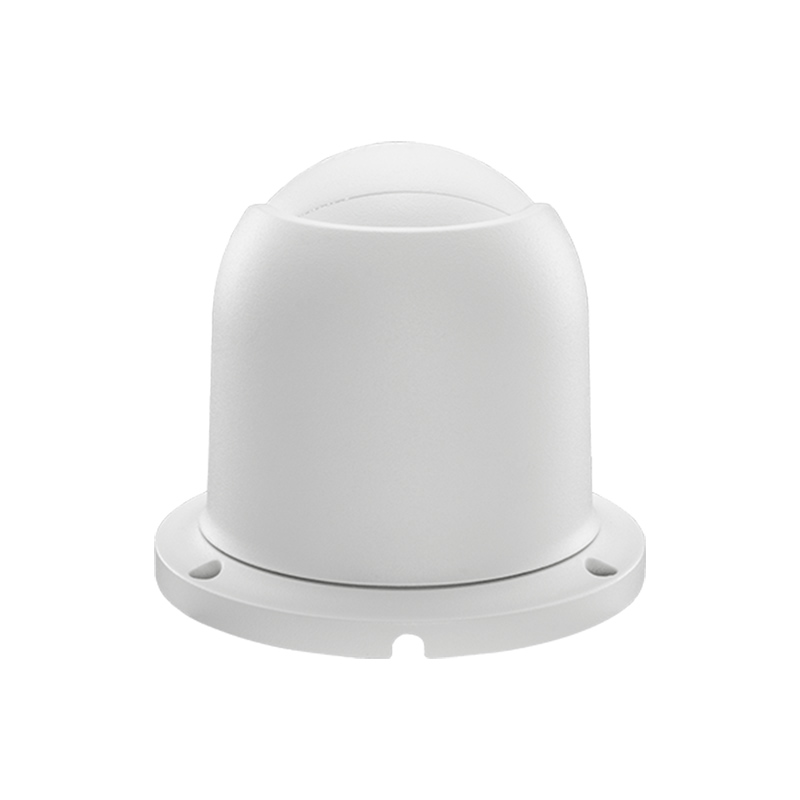

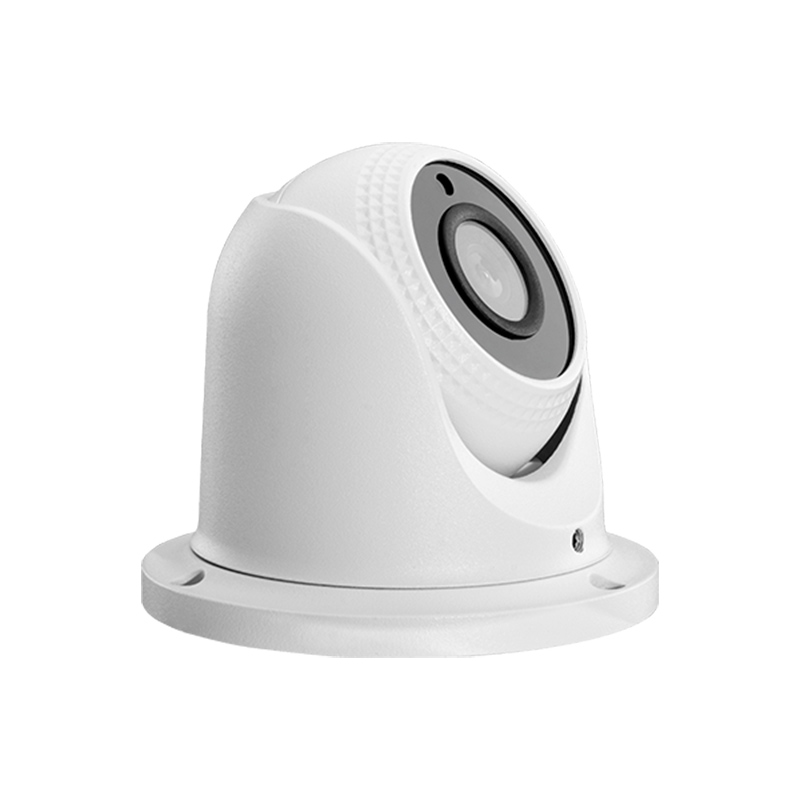

2MP Fixed Lens Eyeball IP Camera
Bio Sense Lite Series

Bio Sense Lite Series IP Camera is the front-end of intelligent video surveillance solution released by based on the Deep-Learning algorithm and Computer Vision technology.

By using advanced and powerful CPU,couple with the embedded intelligent classification algorithm based on computer vision technology, the Bio Sense Lite IP Cameras can accurately detect and recognize 2 key types of target: human, vehicles, meanwhile effectively filter out the other useless objects such as: animals, leaves, shadows, and rain, etc to reduce the false alarms, and more focusing on the important alarms.

The Bio Sense Lite IP Cameras can greatly help to improve the efficiency and safety of the entire video surveillance system, can be widely used in different scenario such as smart school, office, industrial park, community, public security, etc.

Product detail

♦ 1/2.9” 2MP CMOS Sensor

♦ H.265 triple stream encoding

♦ High-quality optical lens: 2.8mm

♦ 30m IR e ective range

♦ Built-in PoE

♦ Embedded intelligent classification algorithm based on computer vision technology

♦ Multiple intelligent video analytic features

♦ Support multiple browsers web client

♦ Remote viewing with mobile application and platform software

♦ Lightning protection up to 6K V

♦ IP67 metal casing

H.265 HEVC

H.265 is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D/3D noise reduction, etc. Delivering high quality video with up to 70% lower bandwidth.

IVA (Intelligent Video Analytics)

The Bio Sense Lite IP Camera support multiple intelligent video analytic functions: Line Crossing, Area detection, Smart Motion Detection supports human and vehicle targets classification.

ANR (Only for SD card models)

While the connection lost between IPC and NVR, the video will be saved in SD card. The saved video will be auto replenished to NVR when network recovers to avoid any video lost.

Protection

With precise mechanical and rugged metal casing design, the Bio Sense Lite Series IP Cameras can stand against water and dust with industrial IP67 rank, and support to work at variety of harsh outdoor environments such as temperature range -30°C to +60 °C, etc.

Model

GT-852E21C-S3-SE

Image Sensor

1/2.9” 2MP CMOS

Max.Resolution

1920(H)*1080(V)

ROM

128MB

RAM

256MB

Scanning System

Progressive Scan

Electronic Shutter Speed

1/5 s to1/100,000 s

Min. Illumination

0.01Lux@F2.0 (AGC on, Color), 0 lux (IR on, B&W)

S/N Ratio

>52dB

IR Range

30 m

Illuminator On/O Control

Auto/Manual

Illuminator Number

2*IR LED

Smart IR

Support

Angle Adjustment for Installation

Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

TV System

PAL/NTSC

Image Settings

Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, Adjustable by platform software or web browser

Software Reset Default

Support

General Function

Heartbeat, Mirror, Privacy mask, Log, Password reset

Lens Type

Fixed Lens

Lens Mount

M12

Mount Type

Board-in

Focal Length

2.8mm

Max. Aperture

F2.0

Field of View

FOV: 110°, Horizontal: 113°, Vertical: 60°, Diagonal: 130°

Iris Type

Fixed

Close Focus Distance

1.5 m

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8mm	43 m	16 m	9 m	4 m

Video Compression

H.265 / H.264

Resolution

1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280*720) /

D1 (704*576) / VGA (640*480) / Q720 (640*360)

Max Video Frame Rate

Main stream

50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720)

60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720)

Sub stream

50Hz (PAL): 25fps (704*576, 640*480, 640*360)

60Hz (NTSC): 30fps (704*576, 640*480, 640*360)

Third stream

50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720, 704*576)

60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720, 704*576)

Video Stream Capability

Triple streams

Bit Rate Control

CBR / VBR

Video Bit Rate

H.264: 896kbps–6Mbps H.265: 1024Kbps ~ 6Mbps

Day/Night

Auto (ICR) / Color / B&W

BLC

Support

HLC

Support

WDR

DWDR

Scene Self-adaptation

Support

White Balance

Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp

Gain Contro

Low, Mid low, Mid, Mid high, High

Noise Reduction

2D / 3D NR

Motion Detection

Smart /Ordinary (4 areas)

Region of Interest (ROI)

Support (4 areas, Level 1~6)

Mirror

Support

Image Rotation

0°/90°/180°/270°/Horizontal/Vertical

Privacy Masking

4 areas

Corridor Mode

Support

Digital Zoom

Support

Audio Compression

G.711ulaw

Environment Noise Filtering

Support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Bit Rate

64 Kbps (G.711ulaw)

IVA (Perimeter Protection)

Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification)

Intelligent Search

Embedded intelligent classification algorithm based on computer vision technology

Intelligent Video

Support fast retrieval by human & vehicle targets classification, playback and backup

Basic Alarm Event

Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

Smart Alarm Event

Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification)

Alarm Linkage Actions

Notify surveillance center, trigger recording, trigger capture, send email

Simultaneous Live View

Up to 15 channels

Network

1 RJ45 10 M/100 M self-adaptive Ethernet port

SDK and API

Support SDK, API and ONVIF

Cyber Security

Video encryption; firmware encryption; configuration encryption; account lockout; securitylogs; lP filtering; trusted boot; trusted execution; trusted upgrade; password protection;complicated password; basic and digest authentication for HTTP/HTTPS, TLS; IP address filter; Security Audit Log

Protocol

TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket

Interoperability

ONVIF Profile S/T/G

User/Host

Up to 256 users can be added. 3 user levels: admin, operator and guest

Network Storage

FTP

Web Browser

IE / Edge /Firefox / Chrome / Safari

Management Software

UAccess Master
