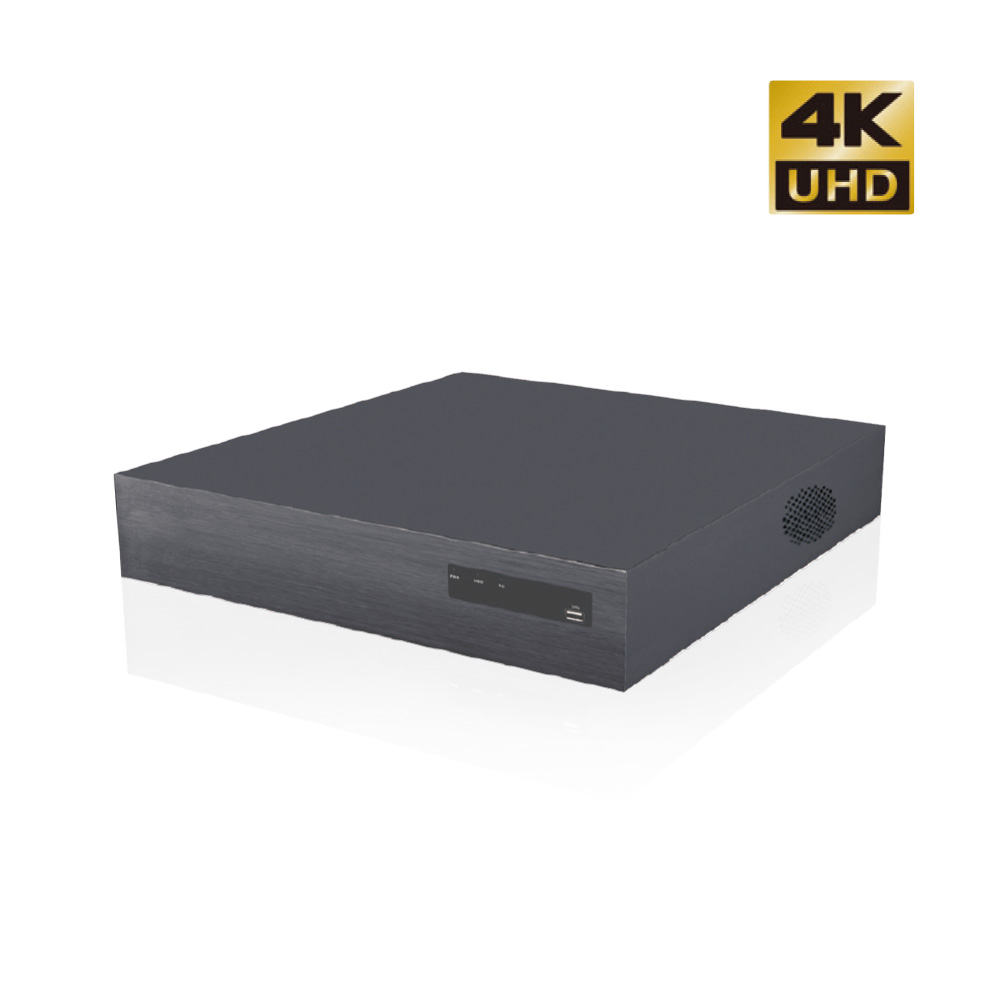

GT-8564NHR

64-Channel 4K H.265 Network Video Recorder

NVR of the GT-8000NHR series could deliver up to 4K resolution excellent image over advanced H.265+ decoding. It’s an ideal consideration for the balance of quality, performance, and budget.
The user-friendly GUI provides intuitive shortcut operations, remote control, management, flexible storage, and playback.
Powered by the reliable interoperability and ONVIF Profile S, it’s compatible with plenty of 3rd-party IPC or crossing platform VMS. The devices can be used in governmental institutions, bank sectors, manufacturers, educational or commercial projects.


Contact us

• H.265+/H.265/H.264 decoding
• Support 36- or 64-channel 4K IP cameras input
• Support 16 channels real-time playback synchronously
• HDMI output up to 4K high definition
• Intelligent video analytics functions (up to IPC)
• DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
• Support multiple web browsers login
• P2P cloud service supported
• ONVIF Profile S compatible



Functions

• IVA functions supported (Intelligent Video Analytics) such as Line Crossing / Target Counting / Object Left/Lost / Intrusion / Scene Change / VQD, etc. (up to IPC)
• User-friendly & full function VMS / Mobile App
• Alarm events linkage actions such as email, audio, buzzer and alarm push message to Mobile App and VMS

Model

GT-8564NHR

Main Processor

Multi-core embedded processor

Operating System

Embedded LINUX

Max IPC Video Input

64CH

Two-way Talk

Support

Audio Compression

G.711

Display Split

1/4/6/9/16/36/64 CH

Resolution

8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1Mp(1280*720) / D1(1024*768)

Live View Capability

36CH@D1(25/30fps)

Video Compression

H.265+ / H.265 / H.264

Recording Resolution

8Mp/5MP/4MP/3MP/1080P/960P/720P/D1

Max. Decoding Capability

36CH@D1(25/30fps)

Incoming Bandwidth

512 Mbps

Bit Rate

Main Stream: 256Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 700Kbps

Record Mode

Schedule, Manual, Motion Detection, IVA Events Alarm

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Playback Channel

16CH

Search Mode

Time/ Date, Alarm Types, IVA Search, Face Retrieval

Playback Function

Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

Backup Mode

USB Device / Network Remote

Local IVA Functions

Line Crossing / Target Counting / Object Left/Lost / Intrusion / Scene Change / VQD

Regular Detection

Motion Detection / Video Shelter / Video Loss

AI Search

Support search target video by multiple intelligent conditions

Network Protocol

TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P

Max. Online User

5

Web Browser

Internet Explorer

Operation System

Windows

Management Platform

AntarVis 2.0

Mobile Application

AntarView Pro+ (iOS & Android)

P2P Cloud Service

Support

Interoperability

ONVIF Profile S, SDK, CGI, API

SATA Ports

9 SATA Ports, up to 8 TB capacity

eSATA

Support

Raid 0/1/5/6/10

Support

HDMI

1x HDMI (4K)

VGA

1920 x 1080/60Hz, 1280 x 1024/60Hz

Network Interface

2 RJ-45 Port (1000Mbps)

USB

1*USB 2.0, 1*USB 3.0

Audio Input/Output

1/1

Alarm Input/Output

4/4

RS-485

Support

Power Supply

AC100~240V, 47Hz~63Hz

Power Consumption

35W (Without HDD)

Casing

2U

Operating Temperature

-10°C to 55°C / 14°F to 131°F

Humidity

10% ~ 90%

Dimensions(L*W*H)

412 * 430 * 87 (mm)

Net Weight

7kg (without HDD)

Gross Weight

7.5kg (without HDD)
