4MP Biosense Fixed Lens Dome IP Camera-Granding technology

GT-854C31B-S4-S

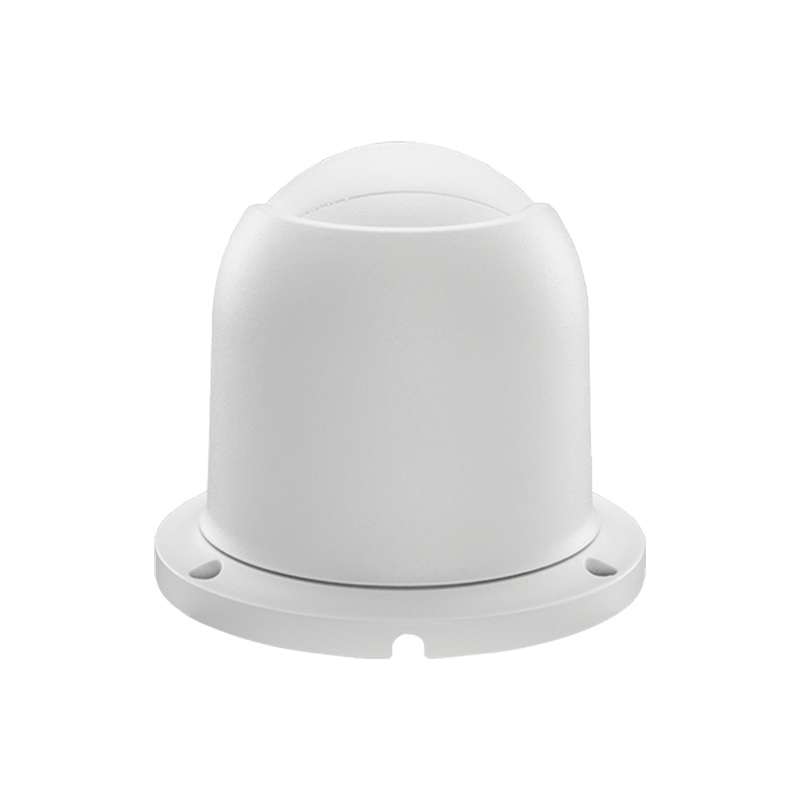

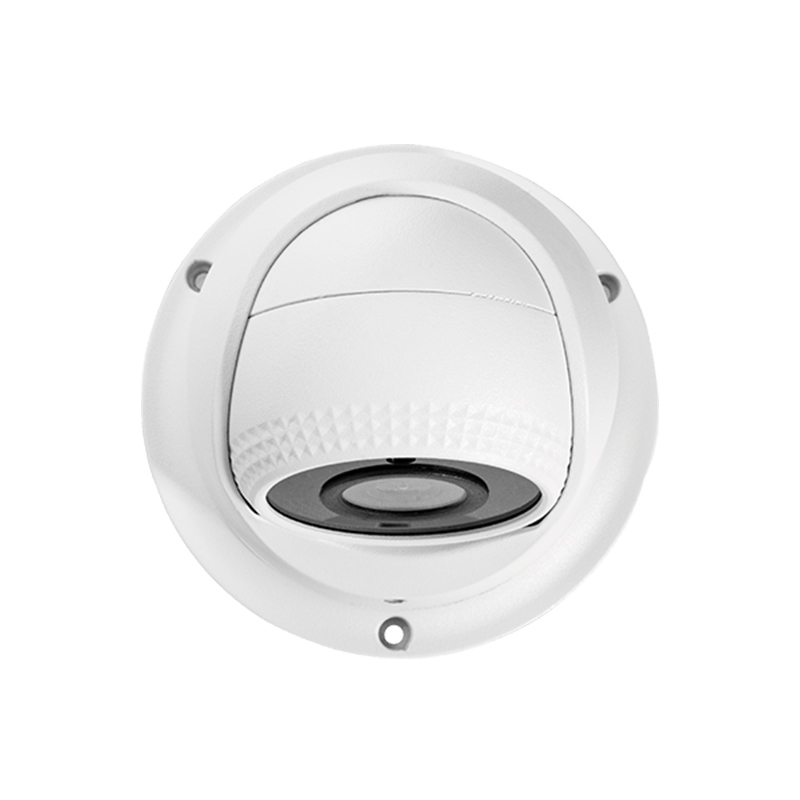

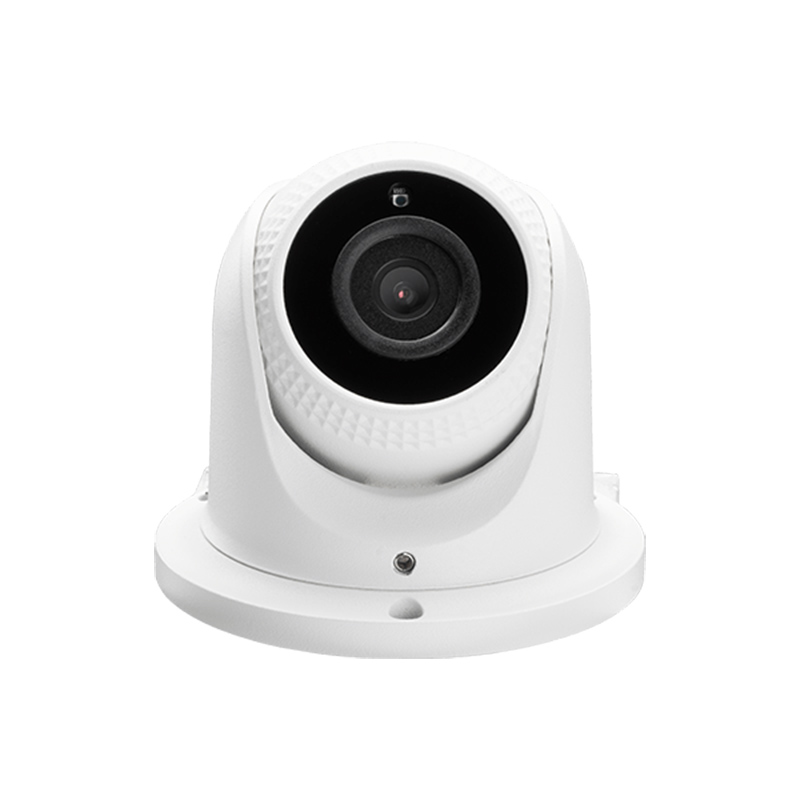

4MP Biosense Fixed Lens Dome IP Camera

Biosense Series

Bio Sense Series IP Camera is the front-end of intelligent video surveillance solution released based on the Deep Learning
algorithm and Computer Vision technology. By using advanced and powerful CPU, couple with the embedded intelligent
classification algorithm based on computer vision technology, the Bio Sense IP Cameras can accurately detect and recognize the human target, meanwhile effectively filter out the other useless objects such as: animals, leaves, shadows, and rain, etc to reduce the false alarms, and more focusing on the important alarms. The Bio Sense Lite IP Cameras can greatly help to improve the efficiency and safety of the entire video surveillance system, can be widely used in different scenario such assmart school, office, industrial park, community, public security, etc.

Product detail

♦ 1/3” CMOS sensor
♦ H.265 dual-stream encoding
♦ High-quality optical lens: 2.8mm
♦ 30m IR effective range
♦ Built-in PoE
♦ Embedded intelligent classification algorithm
based on computer vision technology
♦ Multiple web browsers supported
♦ Remote viewing with mobile application or VMS
♦ Lightning protection up to 6KV
♦ IP67 metal casing

H.265

H.265 technology is an evolutionary optimization of traditional H.264; it includes a series of encoding strategies such as
dynamic ROI, smart 2D&3D noise reduction, and so on, for delivering high-quality videos, and signicantly saving up to
70% bandwidth and storage.

Protection

With the precise mechanical and rugged metal casing design, IP cameras of the Biosense series rated IP67 could stand against water and dust for a long time. With 10% of input voltage tolerance, the cameras could work safely under extreme or unstable power conditions. With a working temperature range from -30°C to 60°C, the cameras could adapt to a variety of harsh outdoor environments.

Model	GT-854C31B-S4-S
Image Sensor	1/3”CMOS Sensor
Effective Pixels	2560*1440
Min. Illumination	Color: 0.01Lux@F1.6 (AGC ON) B/W: 0.001Lux@F1.6 (IR ON)
Flash / DDR	128Mb / 512Mb
IR LED No.	2
IR Distance	30m
S/N Ratio	>52dB
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm
Aperture	F1.6
FOV	103°
Compression	H.265, H.264
Resolution	4MP (2560 x 1440) / 3MP(2304 x 1296) / 1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)
WDR	DWDR
Bitrate Control	CBR / VBR
Bitrate	1792Kbps ~ 6Mbps
Multi-Streaming	Main Stream: 4MP@20fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps Sub Stream: D1@25fps / VGA@25fps /CIF@25fps
Noise Reduction	2D/3D DNR
Audio Compression	G.711u
Privacy Mask	4 areas
ROI	4 areas
Intelligent Video	Line Crossing, Area detection, Smart Motion Detection (human classification)
Protocol	TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IPv4, SSL/TLS
Interoperability	ONVIF Profile S, SDK, API
Max. Online Users	3
Web Browser	IE / Firefox / Chrome / Safari
Management Software(VMS)	UAccess Master
Operation System	Windows
Mobile APP	AntarView Pro+ (iOS & Android)
Ethernet	RJ-45 port (10/100Mbps)
Support	Day / Night, White Balance, Mirror/Flip, Corridor Mode, Motion Detection, Digital Zoom, HLC, BLC, P2P Cloud Service
Power Supply	PoE (IEEE802.3af ), DC 12V±10%
Power Consumption	<3W
Ingress Protection Rating	IP67
Operating Temperature	-30°C ~ 60°C
Operating Humidity	10% ~ 90%
Dimensions	117 * 94.2 (mm)
Net Weight	0.54kg
Gross Weight	0.625kg
