TUYA / TT LOCK APP IP66
Access Control Reader
Contact us
GL-AC05
♦ Compatible with all Bluetooth enable mobile phones (Android: 4.3 above, iOS: 7.0 above)

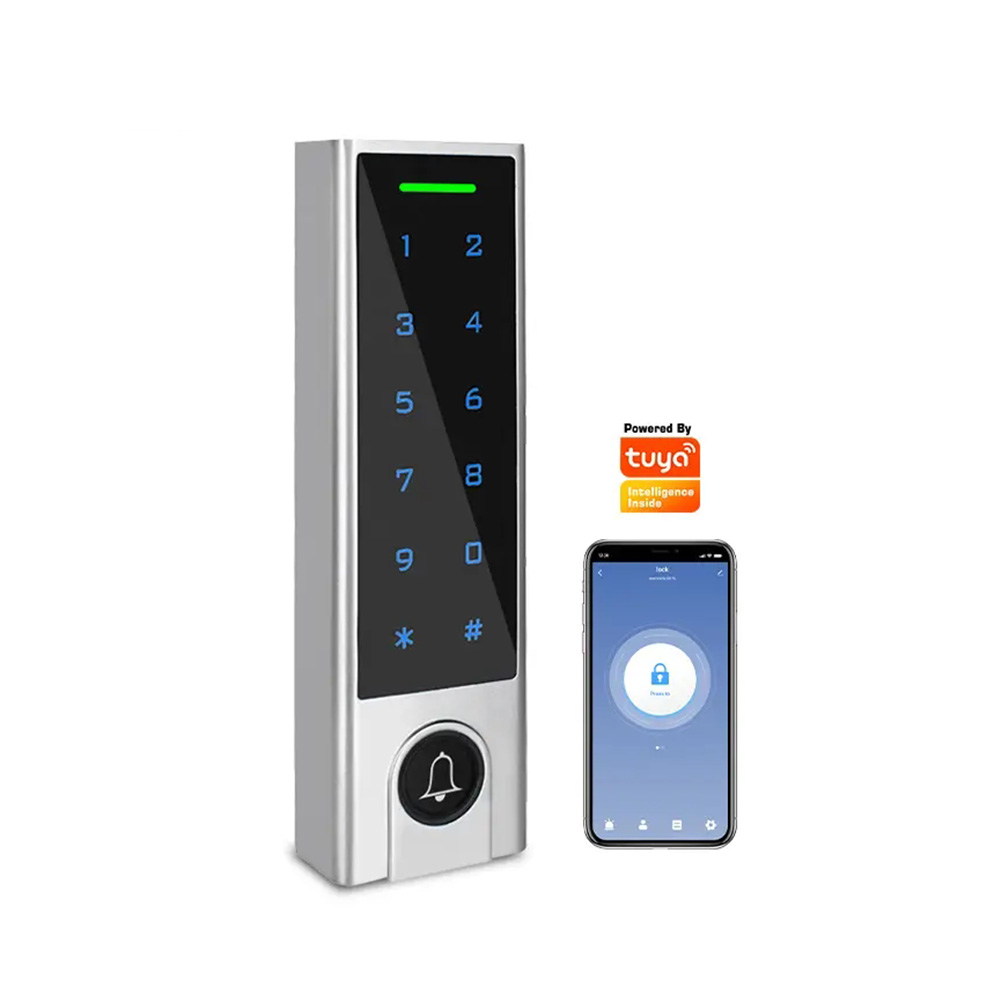

♦ Integratedwith Tuya which supports 500 mobile users and 1000 local users
♦ Integrated with TTLock APP which supports to Add / Delete PIN / Card user and send eKeys
♦ for both iOS and Android, supporting multiple languages
♦ Multiple access modes: APP, Card, Password
♦ Metal housing, anti-vandal, Waterproof
♦ Support checking Opening Record
♦ Support Gateway
♦ Support Time Attendance
|
Model |
GL-AC05 |
|
User Capacity |
Hardware User: 1,000 APP User: 500 Common User: 988 PIN/Card Users Visitor User: 10 Panic User: 2 |
|
APP option |
Tuya or TTLock |
|
PIN Length |
4~6 digits |
|
Operating Voltage |
12~18V DC |
|
Proximity Card Reader |
EM or Mifare |
|
Read Range |
2~6cm |
|

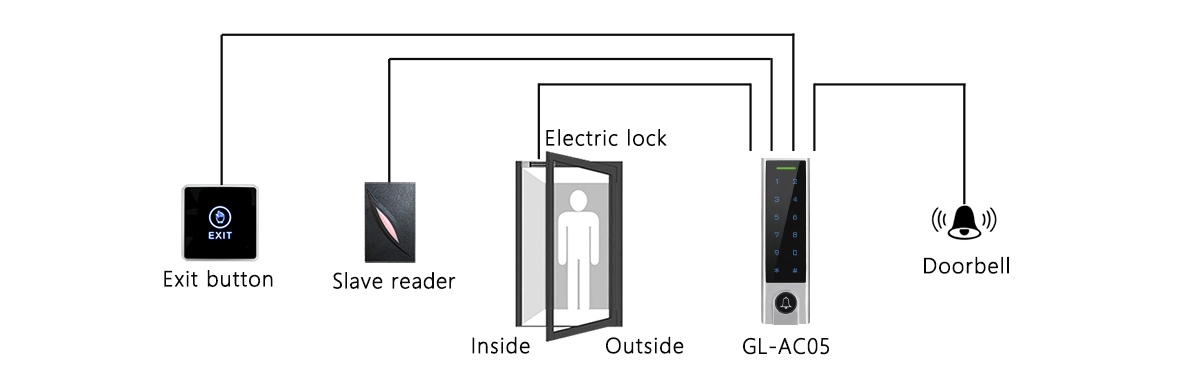

Wiring Connections |
Relay output, Exit button, Alarm, Door contact, Wiegand input/output |
|
Relay |
One (NO, NC, Common) |
|
Environment |
Meets IP66 |
|
Operating Temperature |
-30°C ~ 60°C (-22°F ~ 140°F) |
|
Operating Humidity |
0%RH ~ 98%RH |
|
Physical |
Zinc-Alloy |
|
Color |
Sliver & Black |
|

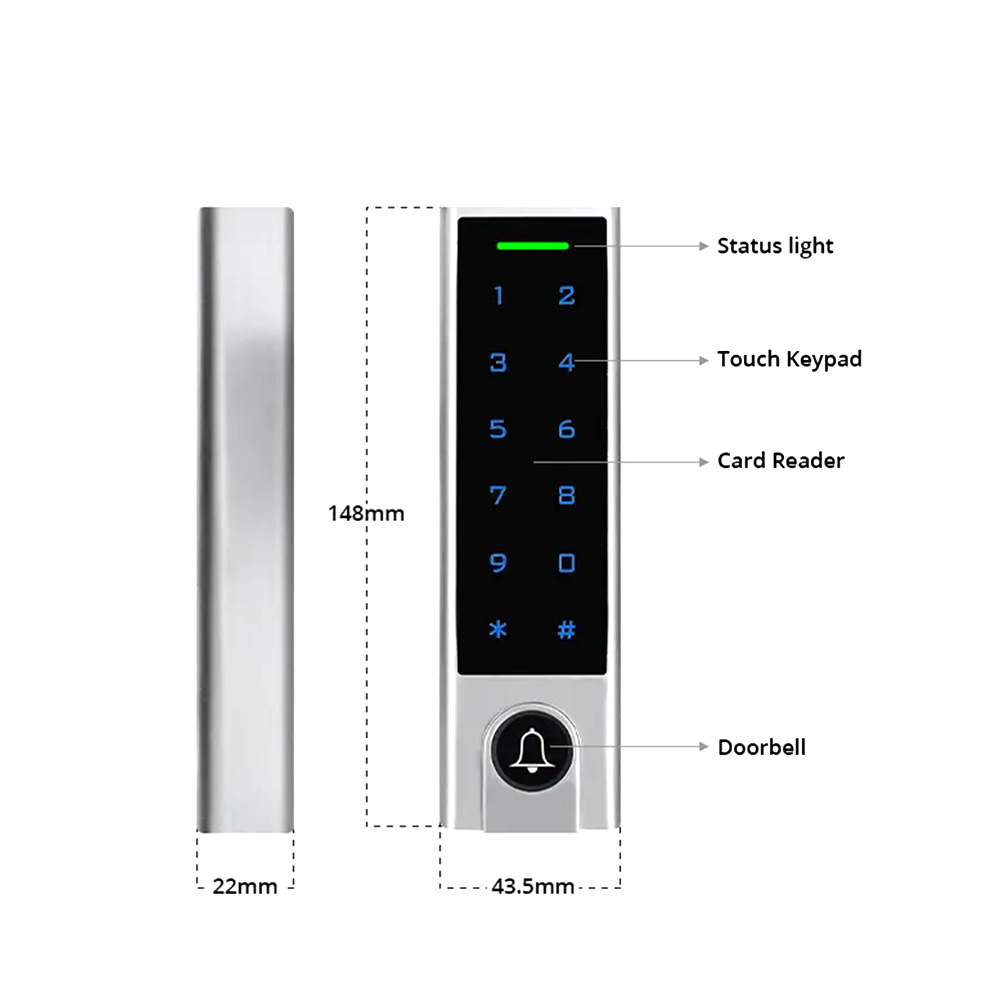

Dimensions |
L148 x W43.5 x H22 (mm) |
|
Unit Weight |
330g |
|
Shipping Weight |
405g |
