♦ IP65 water and dust resistant, IK04 vandal proof
♦ Supports multiple RFID modules and up to 100+ card types
(including, ID / IC / Felica / Legic / DESfire EV1 / EV2 / HID Prox / HID iClass / etc.）
♦ Support Access Control push conversion to Time Attendance push
♦ Communication: TCP/IP, Wi-FI (Optional), Wiegand in&out, RS485, OSDP (Ver2.1.7), RS232 (for printer)
♦ Embedded web server for system configuration
|

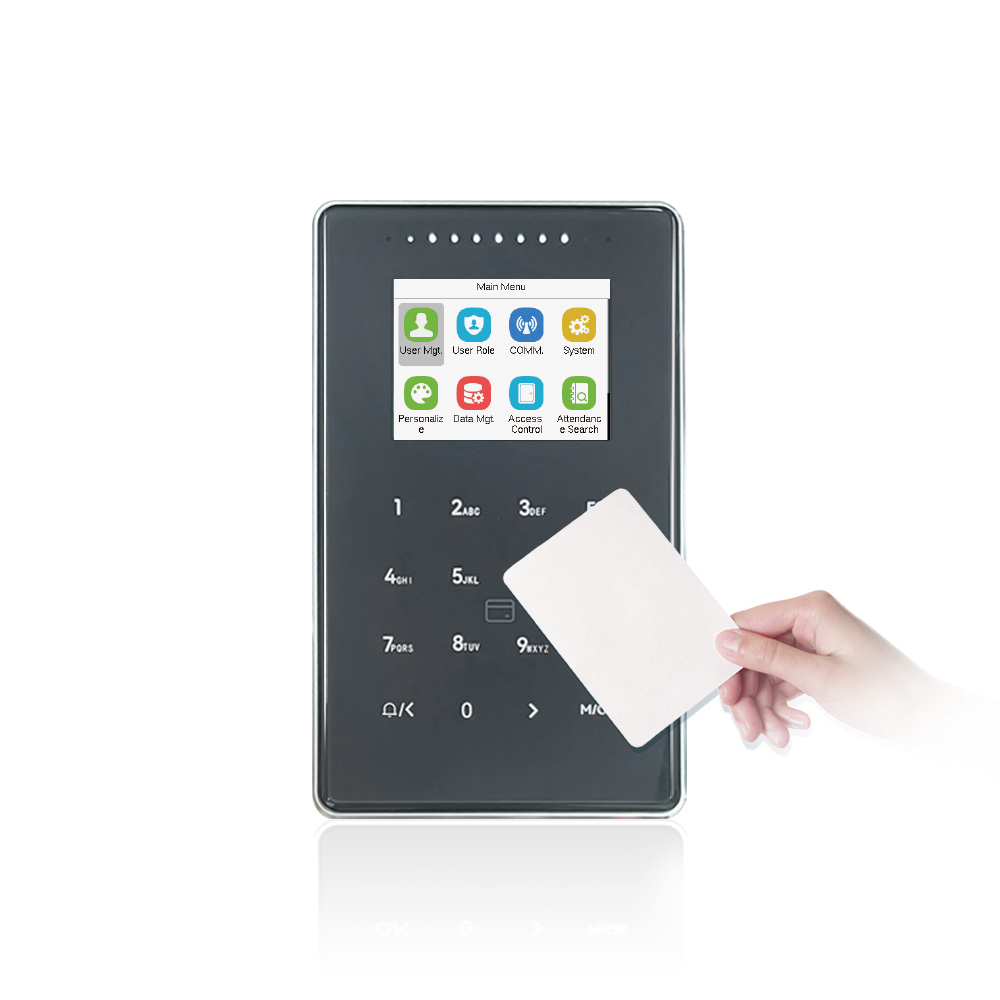

Model
|
SC800
|
|
Display
|
2.4 inch TFT LCD Color Screen
|
|
Operation System
|
Linux
|
|
Card Capacity
|
50,000 (Optional: 100,000)
|
|
Logs Capacity
|
200,000 (Optional: 1000,000)
|
|
User Password
|
6 Digits
|
|
RFID
|
Standard Module: ID Optional Multi-Tech Card Module:
Module 1 Support ID&IC& DESFire EV1/EV2;
Module 2 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox;
Module 3 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox&HID iclass;
|
|
Communication
|
TCP / IP, Wiegand, RS485, OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional)
|
|
Wired Network
|
10 / 100 Mbps, Auto MDI/MDI-X
|
|
Access Control Interface
|

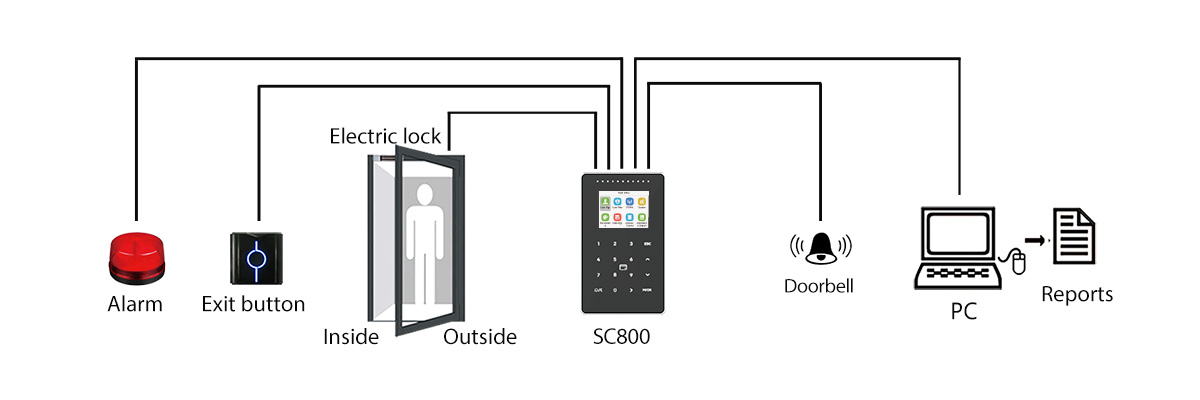

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
|
|
Auxiliary Interface
|
1 AUX input
|
|
Indication Light
|
Breathing light: White, Status light: Red / Green
|
|
Hardware
|
1GHz Dual Core CPU, DDR2 64M, Flash 256M
|
|
Data Protection
|
AES-256 Encryption
|
|
Keypad
|

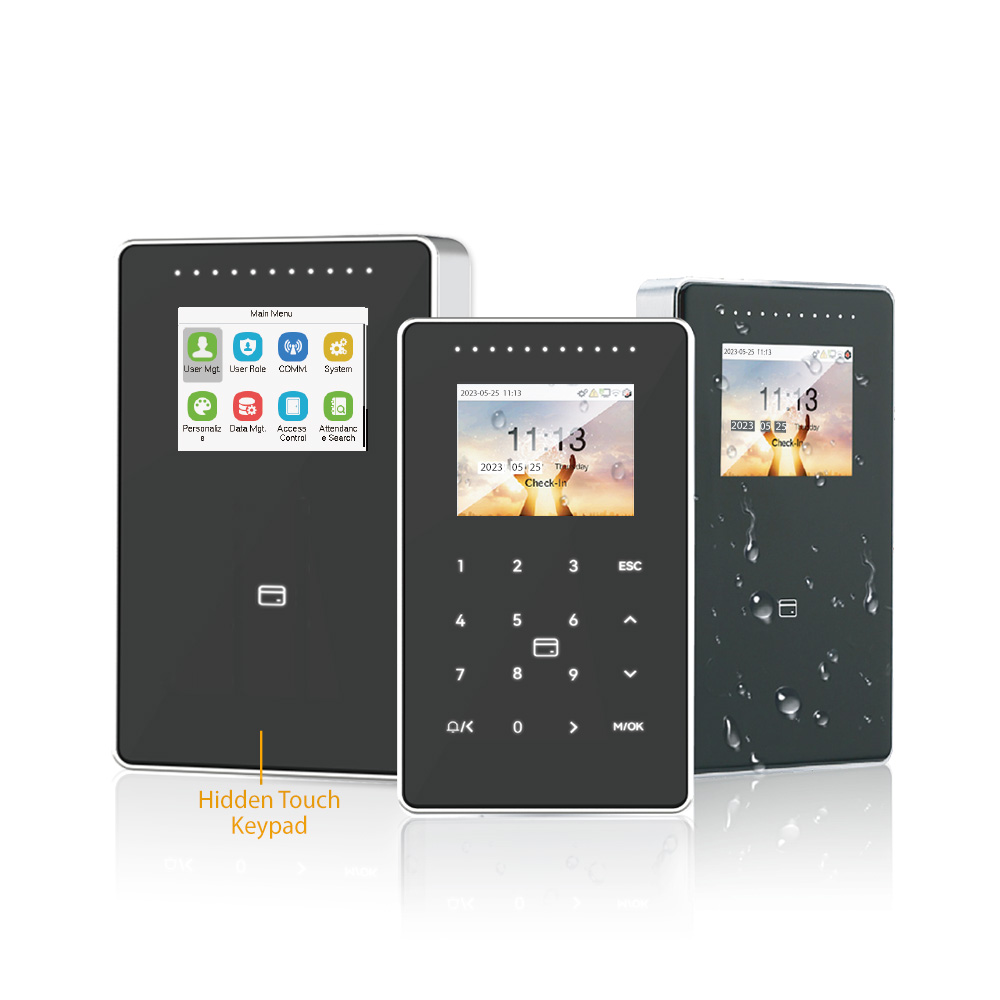

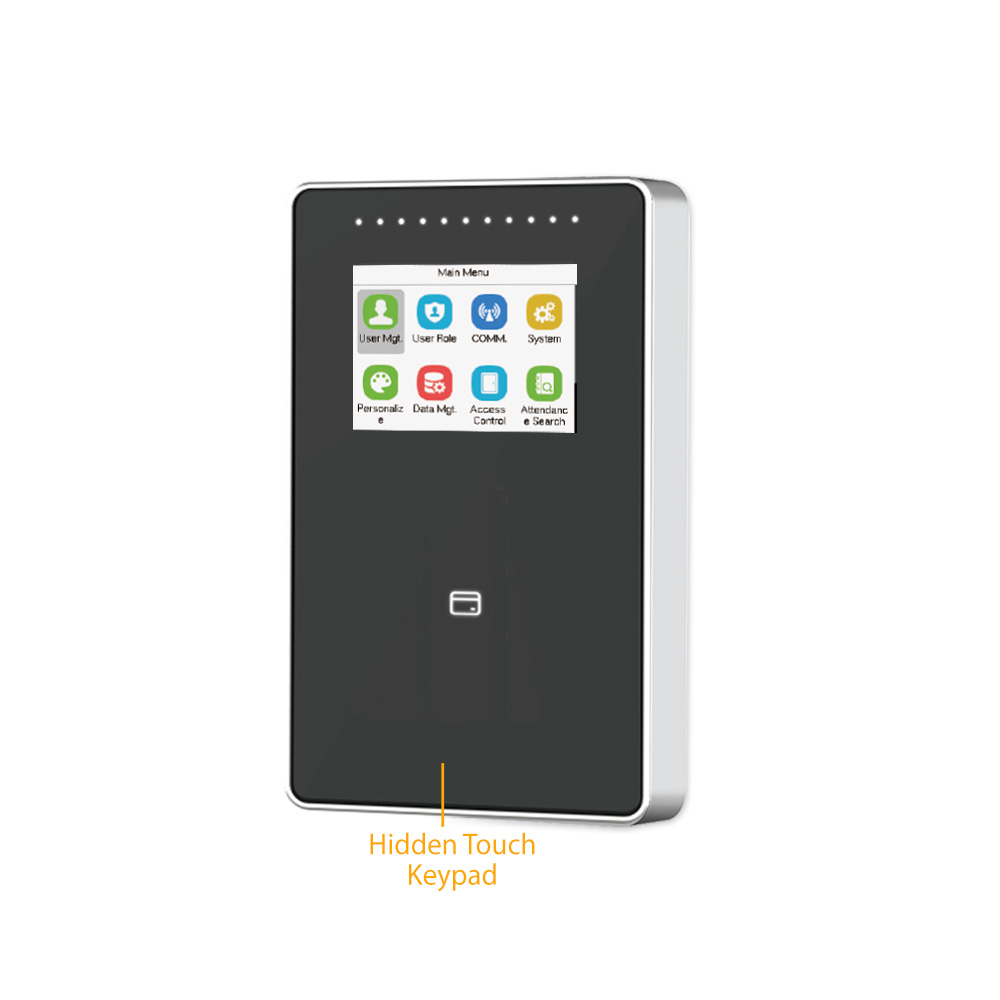

Hidden Touch Keypad
|
|
Wiegand Signal
|
Wiegand In / Out
|
|
Standard Functions
|
ID card, Web sever, Automatic Status Switch, Self-Service Query, DST, 14 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push)
|
|
Optional Functions
|
Wi-Fi, Multi-tech Card Module, Printer
|
|
Power Supply
|
DC 12V 3A
|
|
Operating Temperature
|
-10°C to 55°C (14°F to 131°F)
|
|
Storage Temperature
|
-20°C to 60°C ( -4°F to 140°F)
|
|
Operating Humidity
|
10% to 90% RH
|
|
Dimensions (L*W*D)
|
143*85*19.8mm
|
|
Protocol
|
A & C Push (default) / T&A Push
|
