WiFi or Bluetooth Touch Keypad Touch Key
Access Controller
Contact us

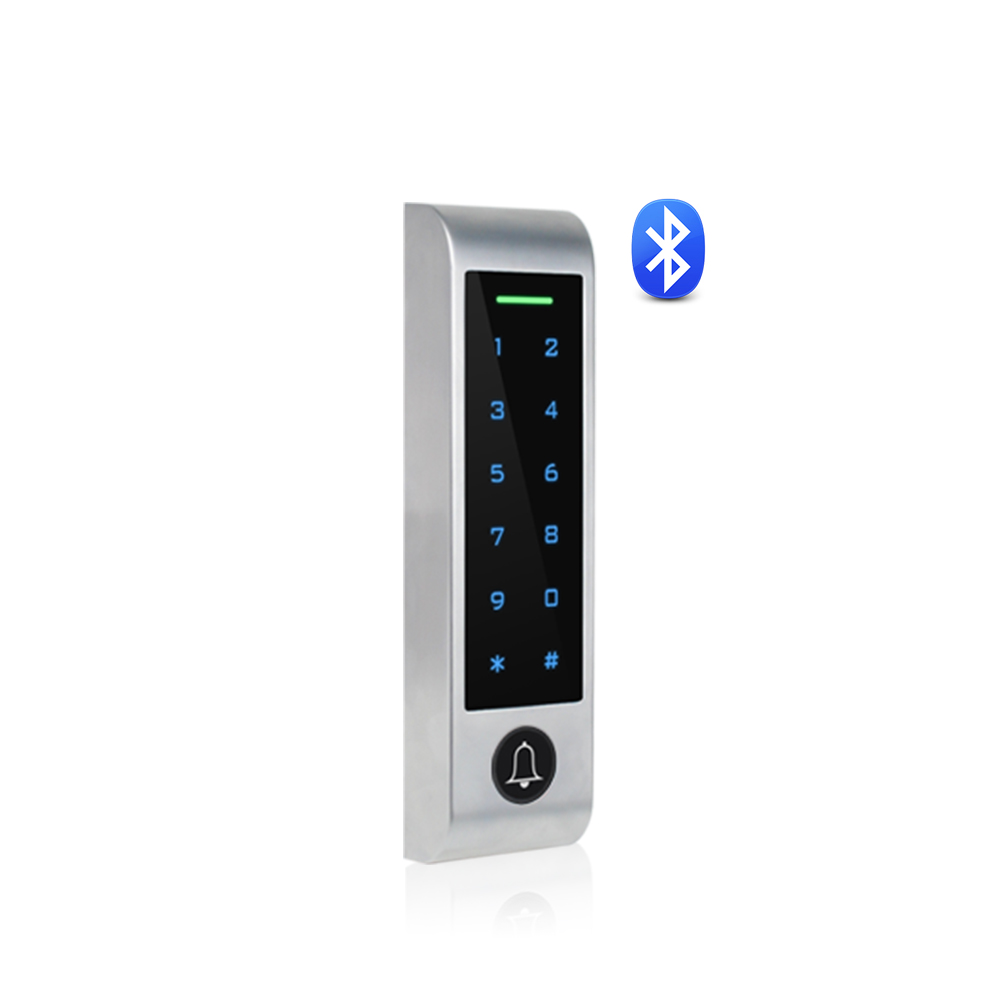

GL-AC07
♦ Metal housing, anti-vandal, waterproof, conforms to IP66
♦ Card type: EM Card or Mifare Card
♦ IOS and Android available
♦ Add / Delete users by APP
♦ Support checking Opening Record
♦ Multiple Access Modes: Smartphone, Card, PIN
♦ Support Gateway（Bluetooth）
♦ Can set Time Restriction for users（WiFi）
♦ Temporary Password (One-time Or Period Code)（WiFi）
♦ Remotely Access (Support 3G/4G/5G)（WiFi）
♦ Doorbell Call Notice（WiFi）
|
Model |
GL-AC07 |
|
User Capacity |
Hardware User: 1,000 APP User: 500 (WiFi) |
|
APP option |
Tuya or TTLock |
|
PIN Length |
4~6 digits |
|
Operating Voltage |
12~18V DC |
|
Proximity Card Reader |
EM or Mifare |
|
Read Range |
2~6cm |
|

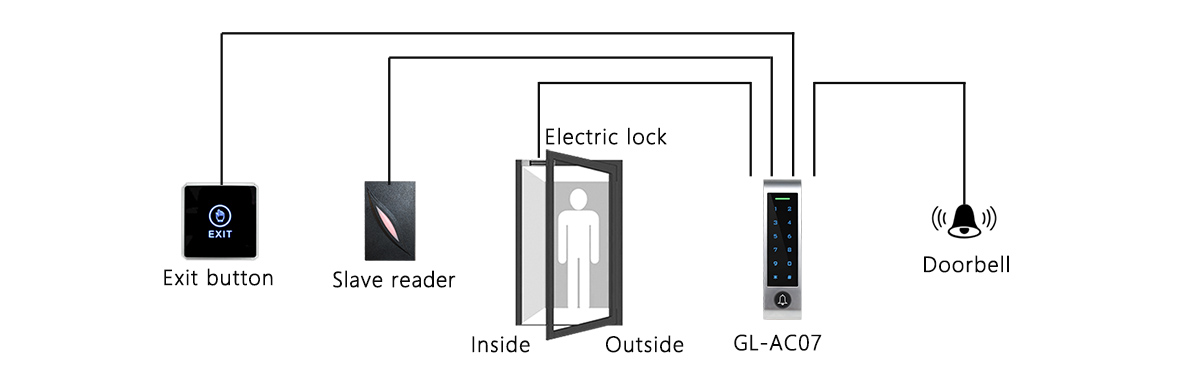

Wiring Connections |
Relay output, Exit button, Alarm, Door contact, Wiegand input/output |
|
Relay |
One (NO, NC, Common) |
|
Environment |
Meets IP66 |
|
Operating Temperature |
-40°C ~ 60°C (-40°F ~ 140°F) |
|
Operating Humidity |
0%RH ~ 98%RH |
|
Physical |
Zinc-Alloy |
|
Color |
Sliver & Black |
|
Dimensions |
L165 x W44 x H22 (mm) |
|
Unit Weight |
415g |
|
Shipping Weight |
500g |
