R16-7DB

Long Range Integrated UHF Reader/Writer



Contact us

♦  Support ISO18000-6C (EPC GEN2) international standards;

♦  Integrated structure design, beautiful appearance, suitable for outdoor environment;

♦  Integrate high-performance linear polarized antennas, Recognize the long range distance stably;

♦  Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;

♦  Recognition speed is fast, and the identification of single label can reach 140 times/second;

♦  Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;

♦  Support development in multiple languages, such as VC, VB, C, etc.

♦  Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.





Model

R16-7DB

Supported protocols

ISO18000-6C(EPC GEN2)

working frequency

ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)

Operation mode

Fixed Frequency or Software Programmable

RF power

0~30dBm,Software Programmable

Reading speed

Single card average reading is 64bits, less than 6ms,

Software Programmable

Work mode

reading Active and reading passive, Software Programmable

Communication Ports

N:Wiegand26/34/98, RS232/RS485 ,USB

E:Wiegand26/34/98, RS232/RS485,TCP ,USB

Input interface

1 way trigger input

Reading range

0-5 m(High power 0~8m)

Status indicators

buzzer

Antenna

7dbi circular polarization antenna

Power supply

DC+9V

Operation Temp

-20℃~+70℃

Weight

0.8 Kg(Package:1.8kg)

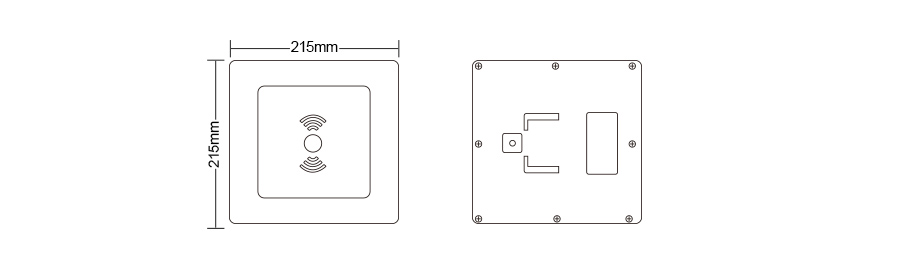

Size

215mm×215mm×50mm
