♦ Support ISO18000-6C (EPC GEN2) international standards;
♦ Integrated structure design, beautiful appearance, suitable for outdoor environment;
♦ Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
♦ Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
♦ Recognition speed is fast, and the identification of single label can reach 140 times/second;
♦ Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
♦ Support development in multiple languages, such as VC, VB, C, etc.
♦ Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.
|
Model
|
U1000E, U1000F
|
U2000E, U2000F
|
|
Card Capacity
|
5000 cards
|
5000 cards
|
|
Transactions
|
30,000
|
30,000
|
|
Hardware Platform
|
ZMM220
|
ZMM220
|
|
Working Frequency
|
F Series: 902MHz-926MHz; E Series: 865MHz-868MHz
|
F Series: 902MHz-926MHz; E Series: 865MHz-868MHz
|
|
Reading Distance
|
0 - 6m (Stable is 0 - 5m)
|
0 -12m (Stable is 0 -10m)
|
|
Communication
|
TCP/IP (connect access software) , USB (connect demo)
|
TCP/IP (connect access software) , USB (connect demo)
|
|
Access Control Interface
|
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Wiegand In/Out
|
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Wiegand In/Out
|
|
Access Control Functions
|
Standard access functions, anti-passback
|
Standard access functions, anti-passback
|
|
Antenna Gain
|
8dBi
|
12dBi
|
|
Output Power
|
18dBm-26dBm
|
18dBm-26dBm
|
|
Support Software
|
Access3.5, Utime Master
|
Access3.5, Utime Master
|
|
Power Supply
|
DC12V, 3A
|
DC12V, 3A
|
|
Working Temperature
|
-20℃~+60℃
|
-20℃~+60℃
|
|
Working Humidity
|
<95% (25℃ )
|
<95% (25℃ )
|
|

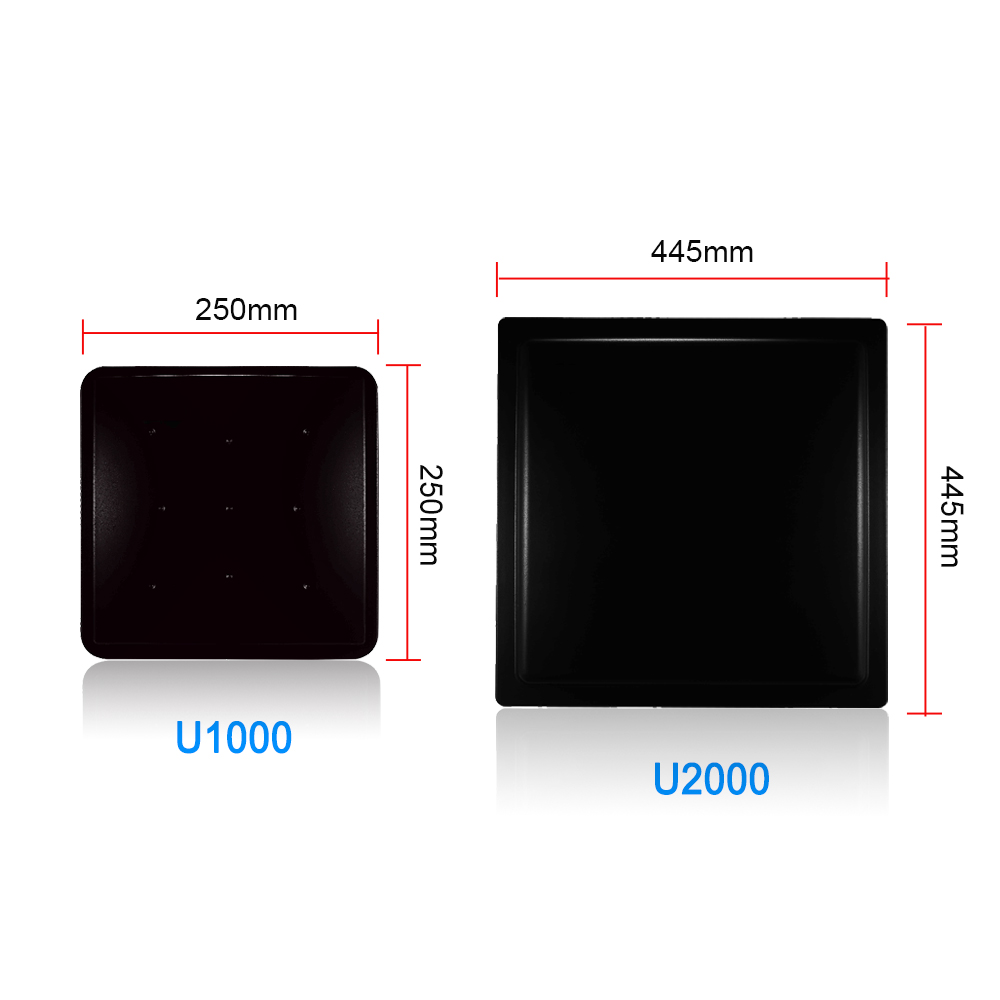

Dimension
|
250mm*250mm*70mm (±5)
|
445mm*445mm*70mm (±5)
|
