Contactless Parking Lot Solution UHF Reader/writer-Granding technology

UHF5 Pro

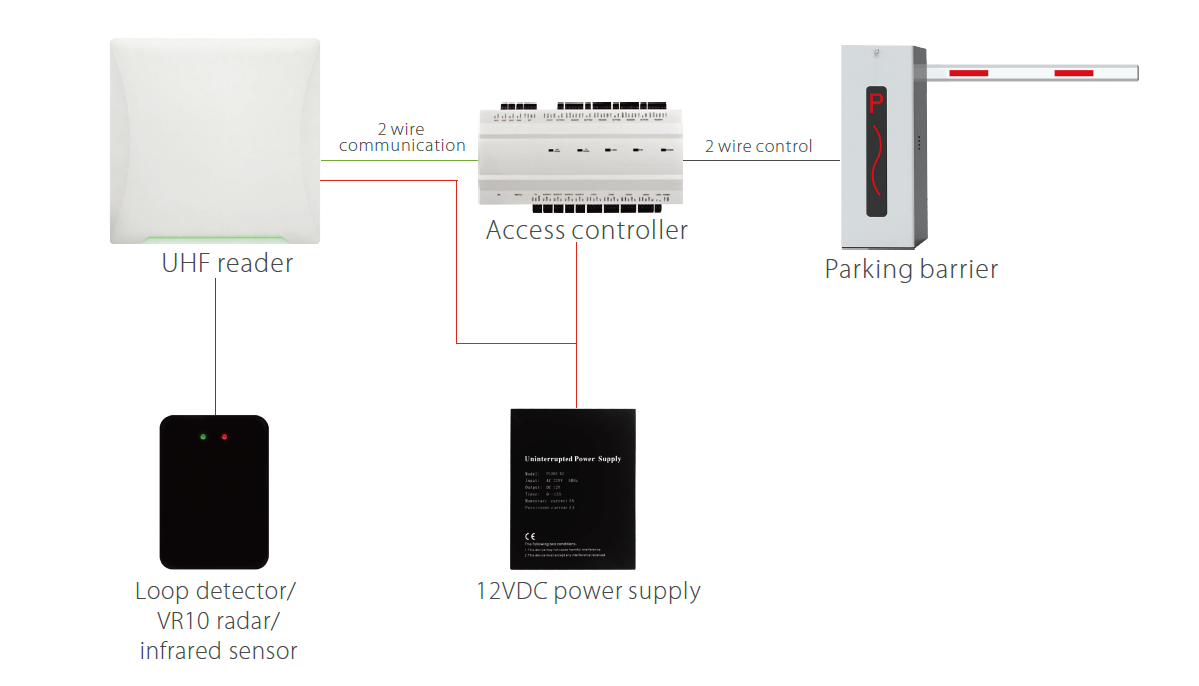

New Contactless Parking Lot Solution

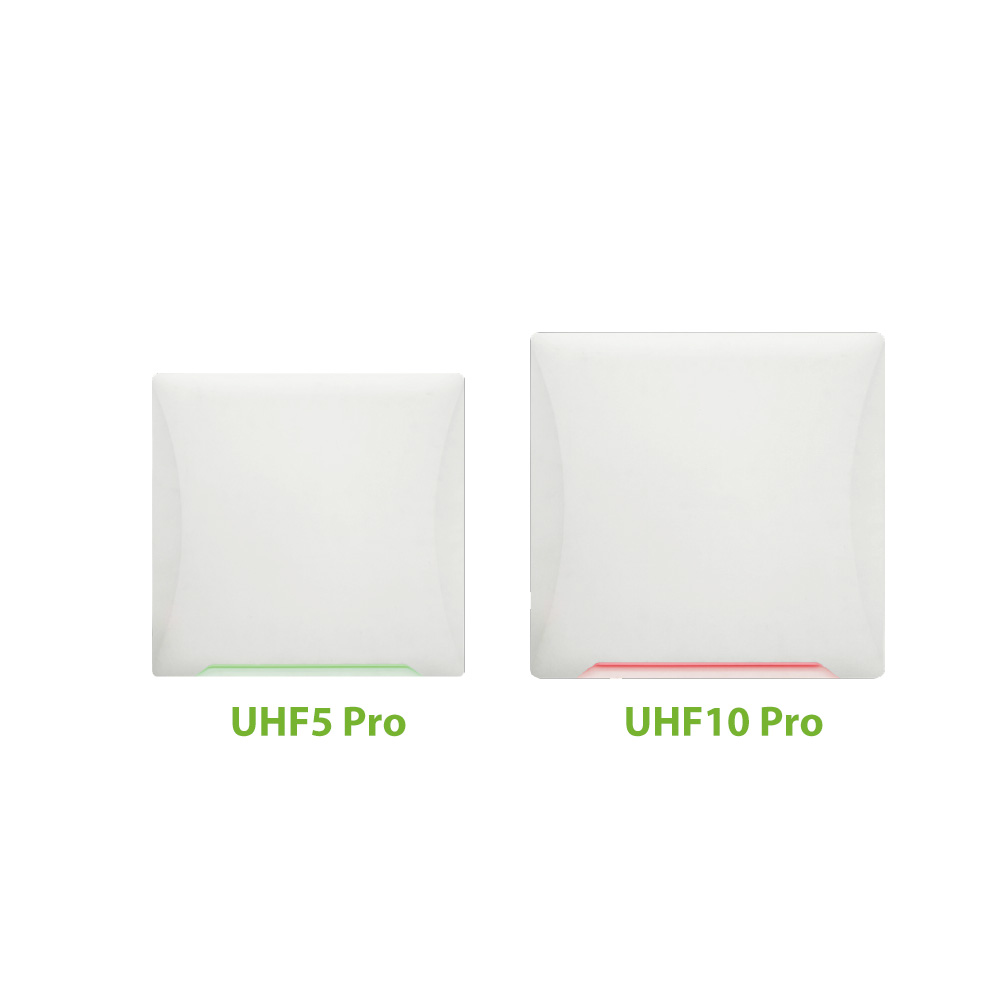

The UHF5 Pro and UHF10 Pro readers offer more stable performance, longer reading distances and faster recognition speeds. The UHF reader is equipped with the passive UHF card function, which could be widely used in Vehicle Management and Personnel Management applications. The product also meets the CE, FCC technology requirements.

Product detail

♦ Support two working modes: Trigger to Read & Always Read (Default)
♦ Support different wiegand data output (Wiegand 26 by default)

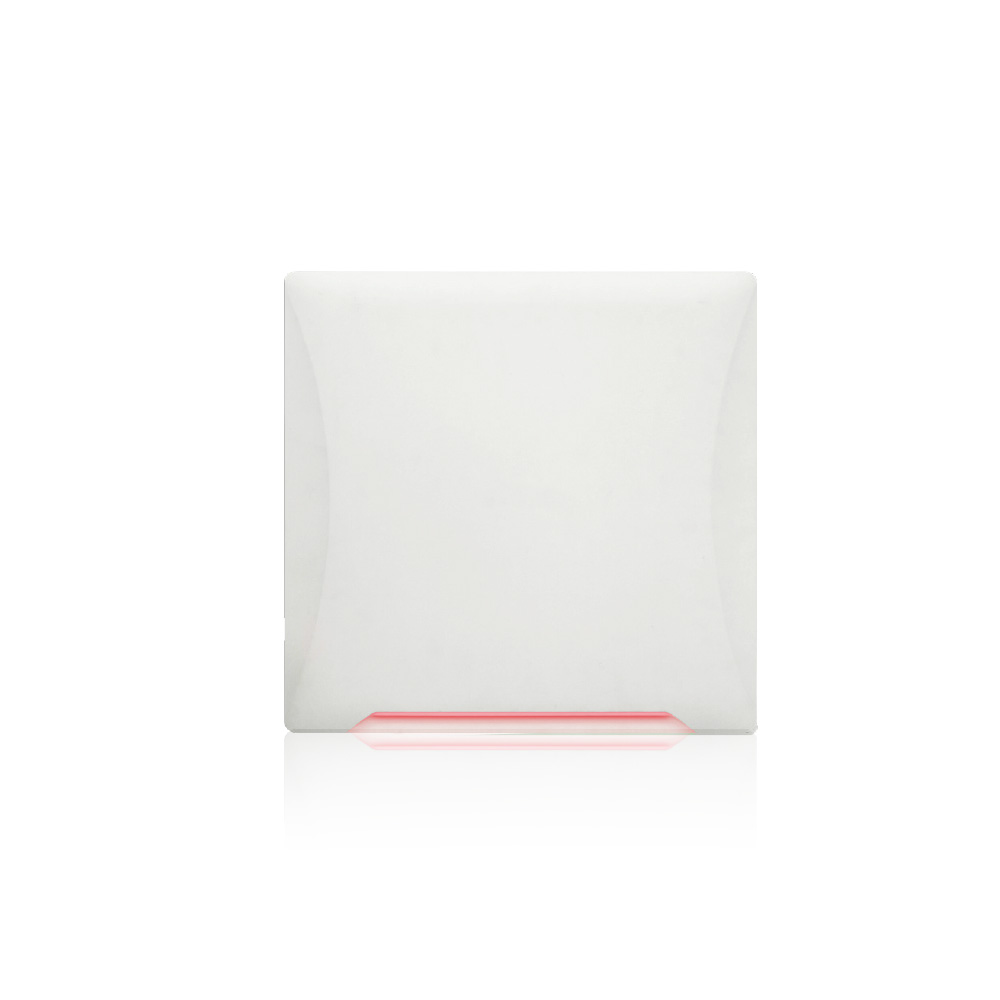

♦ LED at the bottom of readers indicating the reading status
(7-color indicators: red, green, blue, yellow, cyan, purple, white)
♦ Multiple communication modes, supporting Wiegand and RS485
♦ Protection level of IP66

Model	UHF5E Pro & UHF5F Pro	UHF10E Pro & UHF10F Pro
Reading Distance	2 to 8 meters (Hand held test) (Actual scenario test is around 4m)	10 to 20 meters (Hand-held test) (Actual scenario test is around 8m)
Antenna Gain	9dBi	12dBi

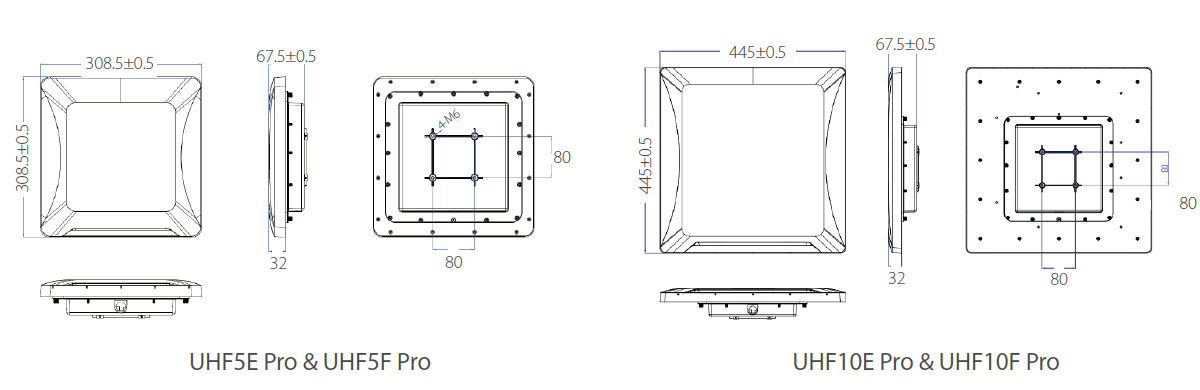

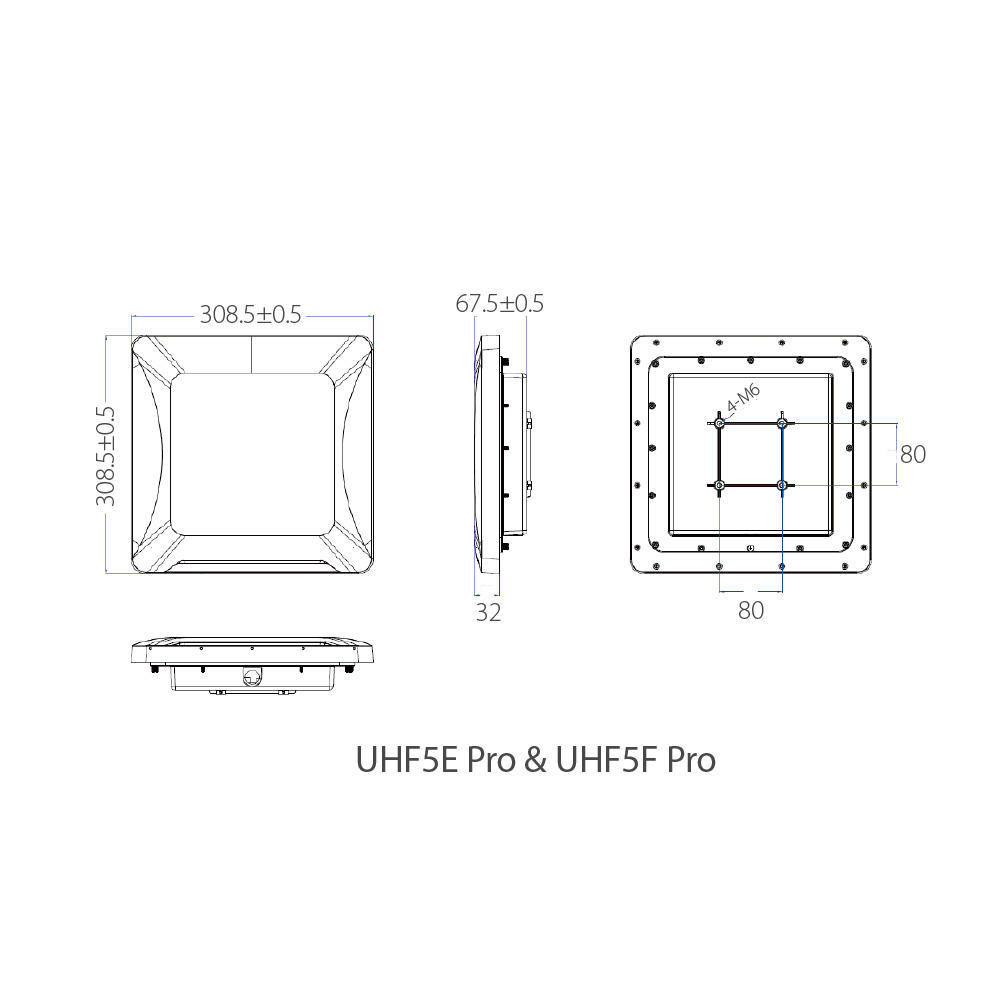

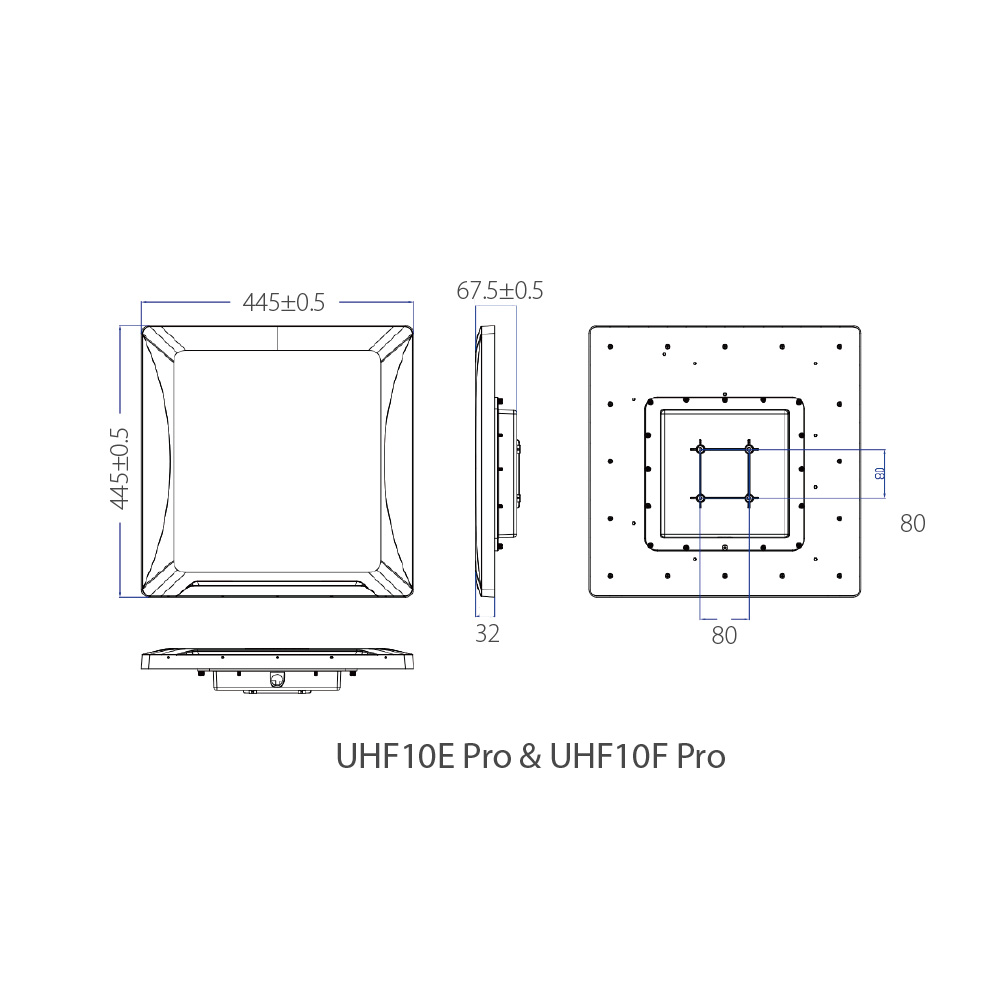

Dimensions (mm)	308.5 x 308.5 x 67.5	445 x 445 x 67.5
Weight	1.8kg	3kg
Power	1.2 - 4.2W	0 -12m (Stable is 0 -10m)
Frequency	E: 865MHz - 868MHz F: 902MHz - 906MHz (adjustable)
Communication Interface	Wiegand, RS485, USB configuration parameters (Wiegand, RS485 requires one of two options)
Interface Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working Mode	Read Always (Default) and Read by Trigger
Output Power	19dBm - 30dBm
Protection Level	IP66
Working Voltage	DC 9-15V
Working Temperature and Humidity	-20°C - 65°C , <85%
Storage Temperature and Humidity	-20°C - 80°C, <85%
RS485 Communication	Optional baud rate (9600, 19200, 38400, 57600, 115200), the default is 115200
