Standalone RFID Card
Access Control System
Contact us
Wordwide Delivery
Genuine product

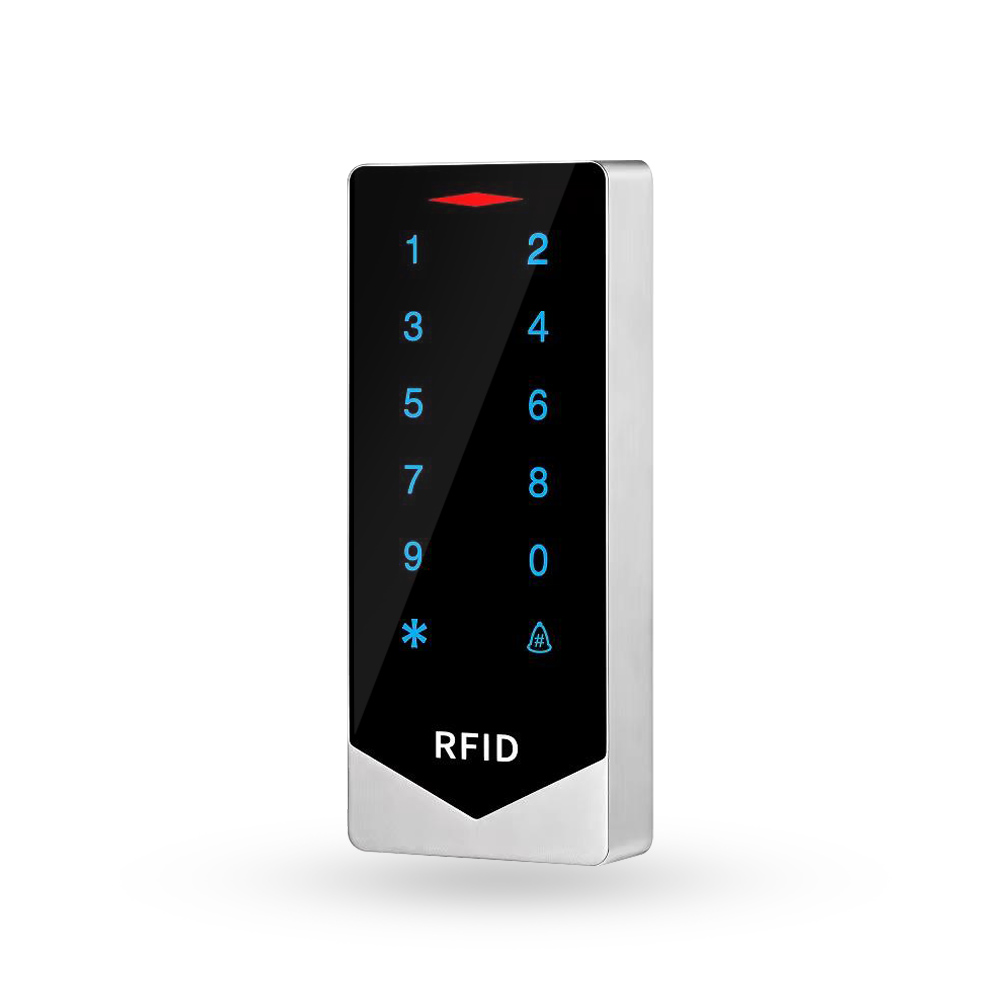

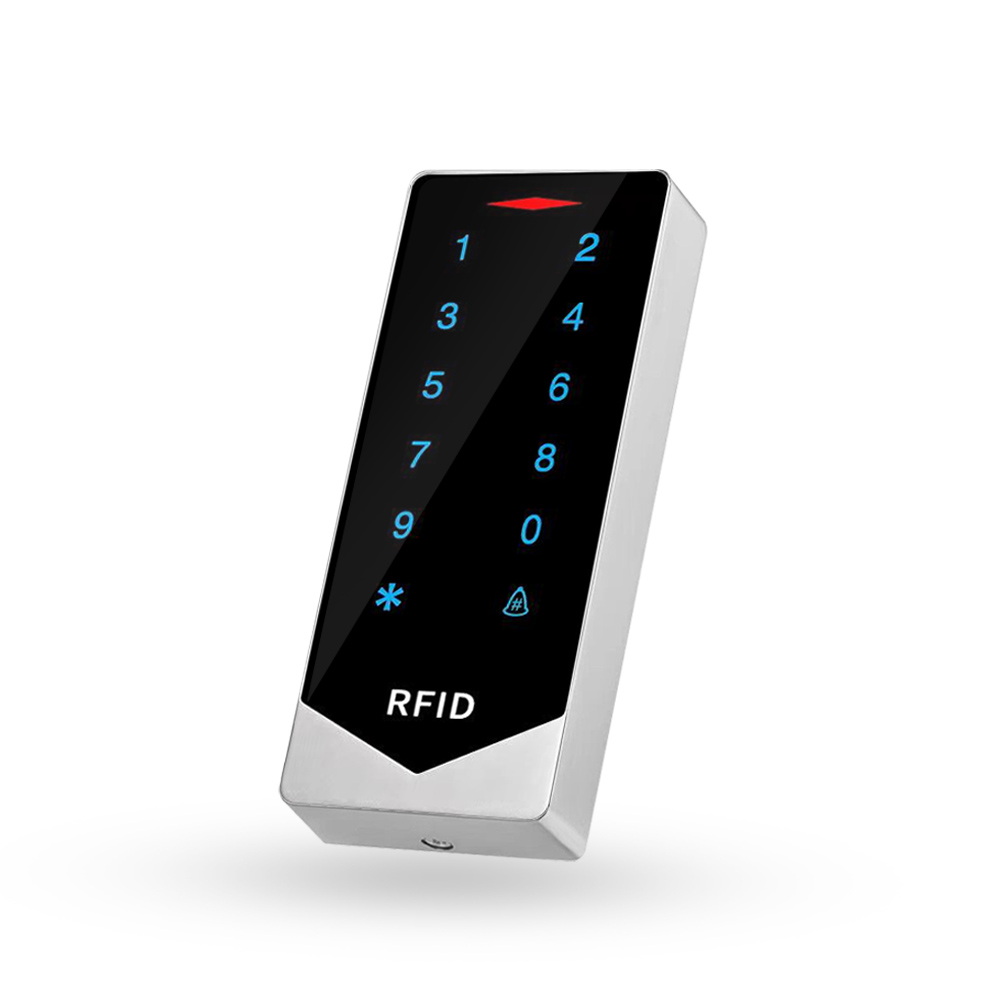

S05

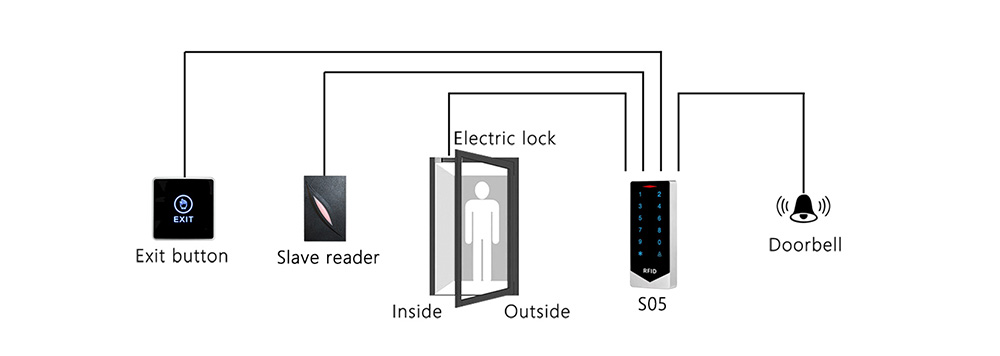

♦ Standalone access control terminal, interface for door lock, exit button
♦ Can be used as slave reader, connect with third party access controller through WG26/34
♦ Can work as master and connect with wiegand slave reader

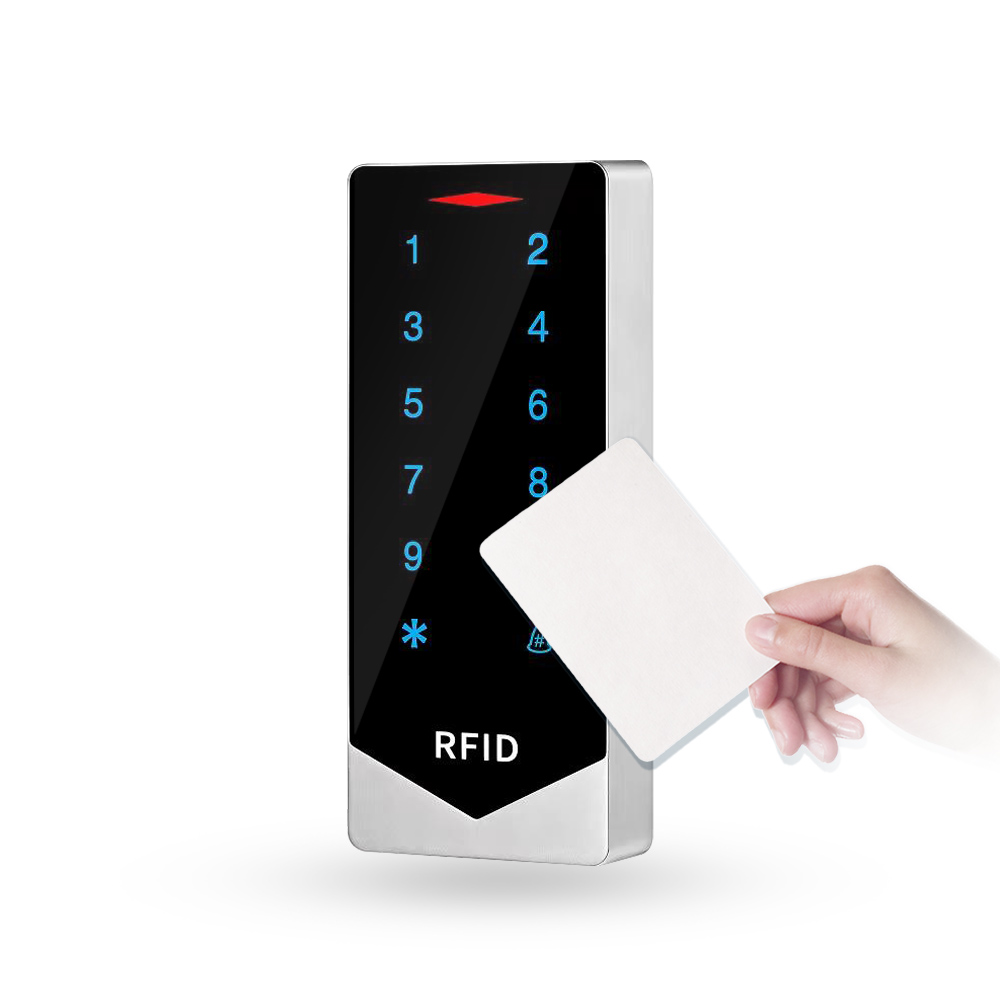

♦ Default is ID card, optional IC/ID card, NFC, 20,000 cards capacity
♦ Can set Public password independently or personal password of 4-6 digits
♦ Can set management card, to add or delete users cards
♦ Easy to delete the card if the card is lost, to enhance security level
♦ Enrolling user, deleting user and accessing control parameter settings by keypad easily

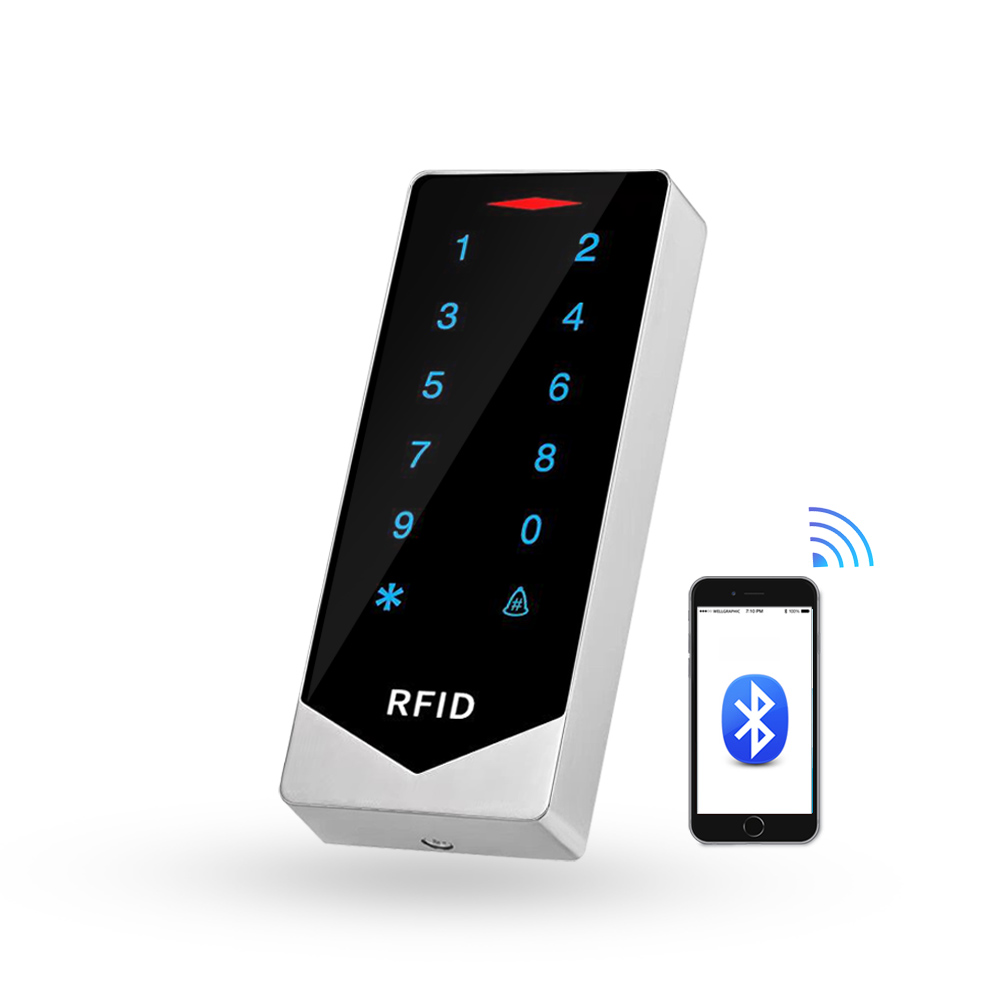

♦ Can open the door by Mobile APP (optional)
♦ User data can be imported into another machine by Wiegand connection
♦ Automatic card adding, easy to add multiple cards
Model |
S05 |
Verification Mode |
Card, Password, Mobile APP (optional) |
Card reading distance |
3~9cm |
Card Capacity |
20,000 |
Electric lock output |
≤ 2A |
Alarm Output |
≤ 1A |
Opening hours |
0~99 seconds adjustable, (factory default is 5 seconds) |
Ambient temperature |
-40℃ ~ 60℃ |
Operating Voltage |
DC12V |
Stand-by current |
≤ 30mA |
Waterproof level |
IP65 |
Dimensions |
132x56x21mm |
