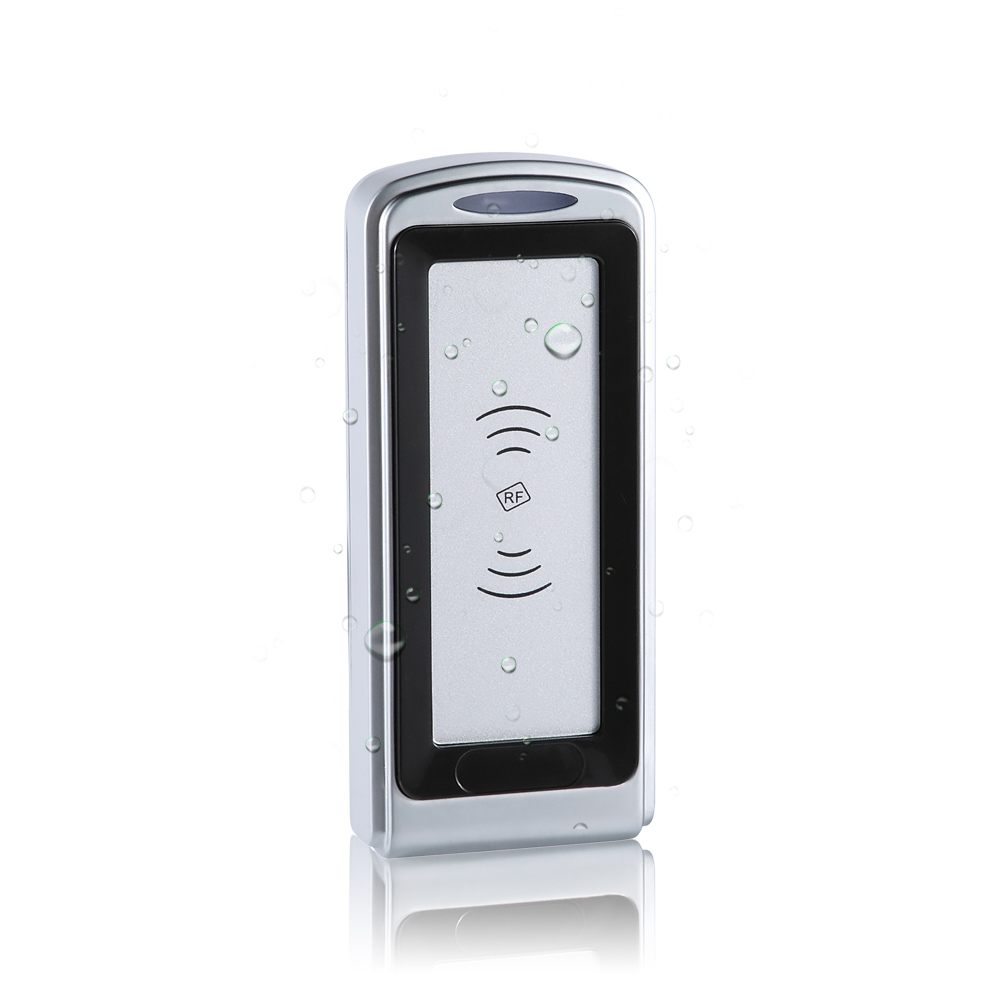

Standalone Waterproof
RFID Access Control Reader
Contact us
U2
♦ 2000 uses capacity, supports Card, IR remote control or WiFi APP (optional).
♦ Anti-vandal, Waterproof IP68 for outdoor application.
♦ With Wiegand26/34 input & output signal.
♦ Mounts easily to interior and exterior walls.
♦ Support 125Khz ID card, can customize 13.56Mhz Mifare card.
♦ Support 2 pcs master card to add and delete card users.

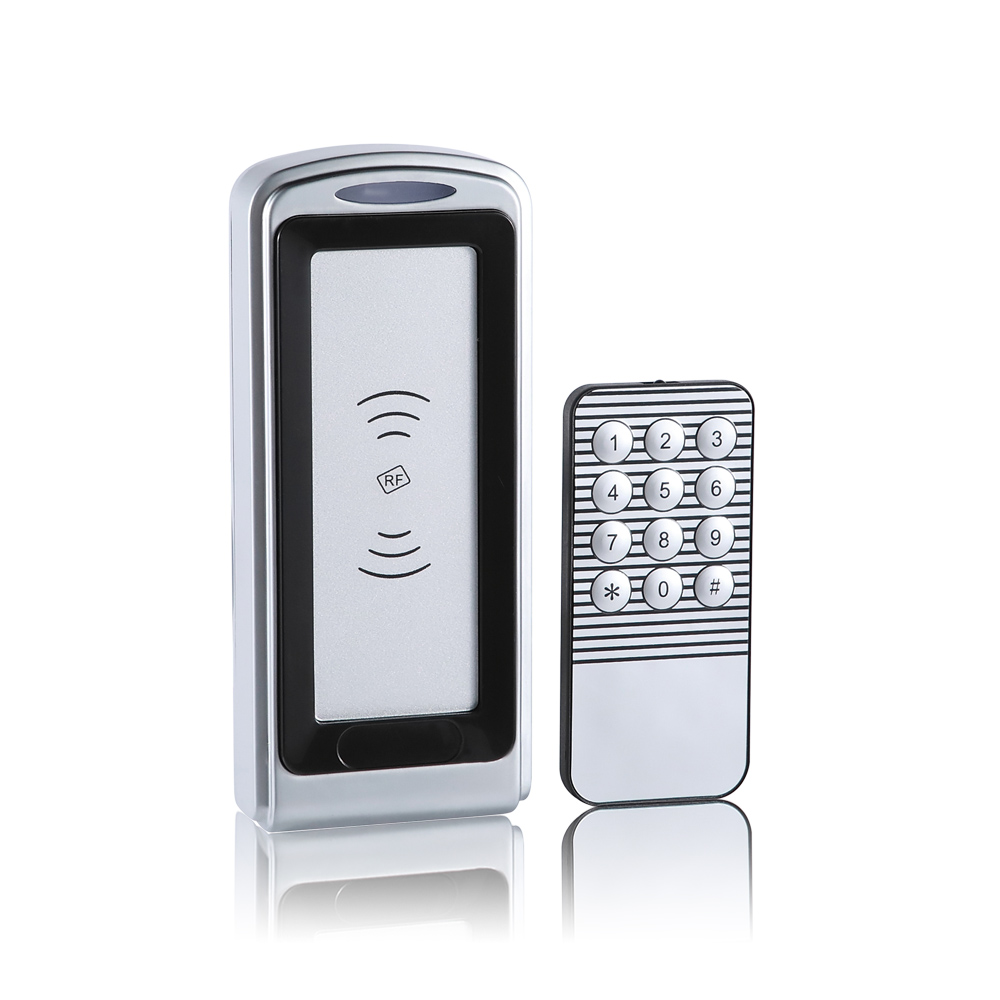

♦ Can add and delete card users by IR Remote Control(optional).

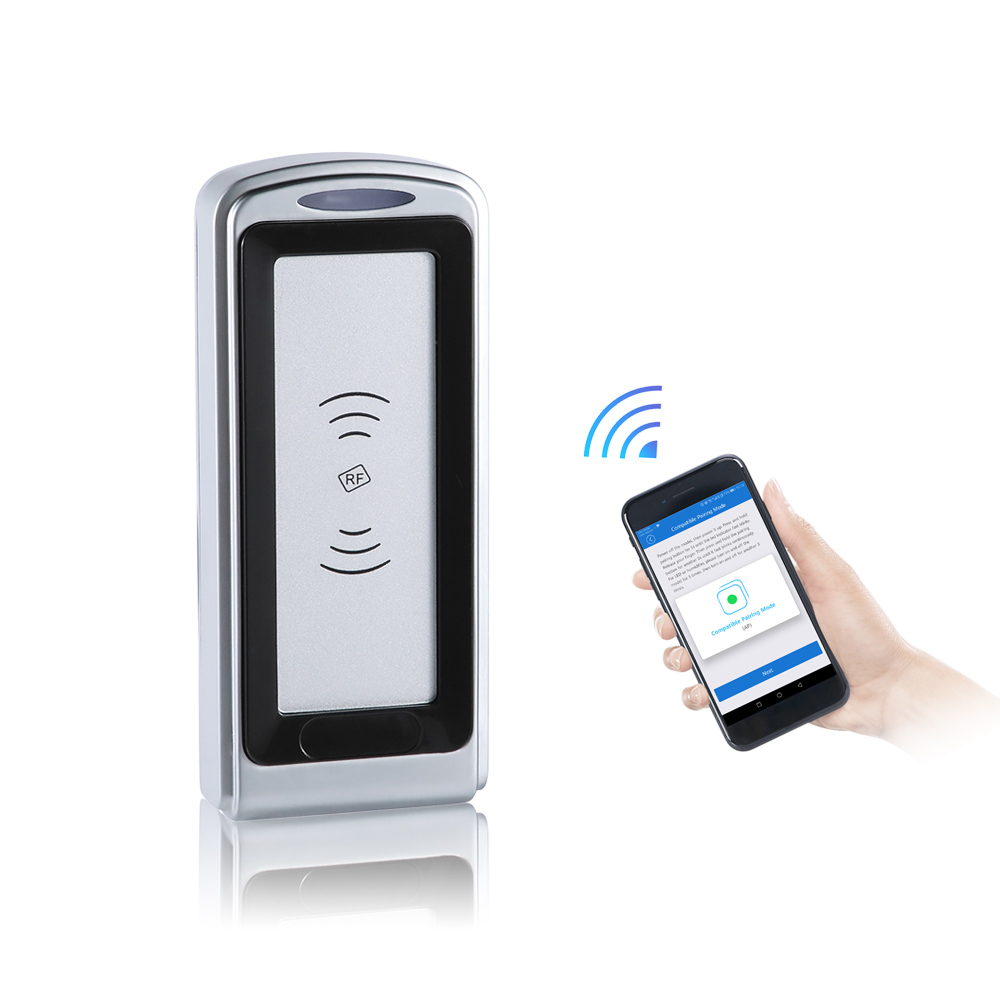

♦ WiFi function can be customized.
♦ IR Remote Control is optional.
|
Model |
U2 |
|
User Capacity |
2000 |
|
LED Indicator |
Green, Red |
|
Keypad |
No keypad |
|
Verification Type |
Card, WiFi or IR remote control(optional) |
|
Built-in Card Reader |
125Khz EM card, 13.56Mhz is optional |
|
Reading Distance |
3-6 CM |
|

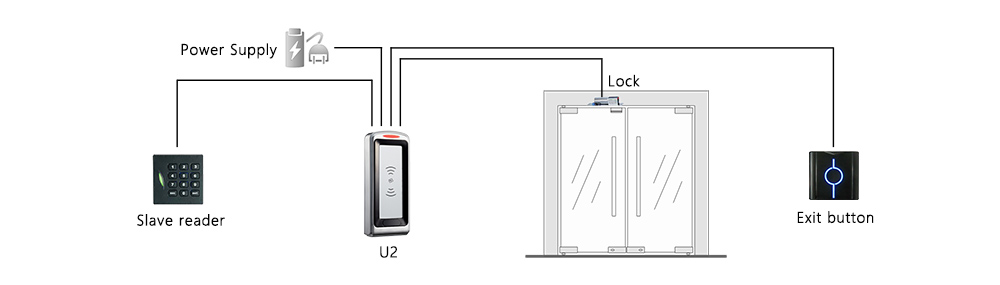

Access Control Interface |
Electric lock, Exit button and Door sensor |
|
Wiegand Format |
Wiegand26/34 input & output |
|
Power Supply |
12VDC (power supply is optional) |
|
Working Temperature |
-35℃~60℃ |
|
Working Humidity |
10%-90% |
|
Dimension(W*H*D) |
58*135*22mm |
|
Weight |
500g |
|
Ingress Protection Rate |
IP68 |
|
Optional function |
WiFi, IR remote control, Mifare card reader |
