Standalone Waterproof RFID Access Control Reader with Keypad
Contact us
U8
♦ Unlock mode: Card, PIN, Card+PIN.
♦ Built-in 125khz EM card reader, 13.56MHz Mifare card function is optional.
♦ Anti-vandal, Waterproof & Back-lit Metal Key Buttons.
♦ Audible beep and visible indicator provide feedback for the user.

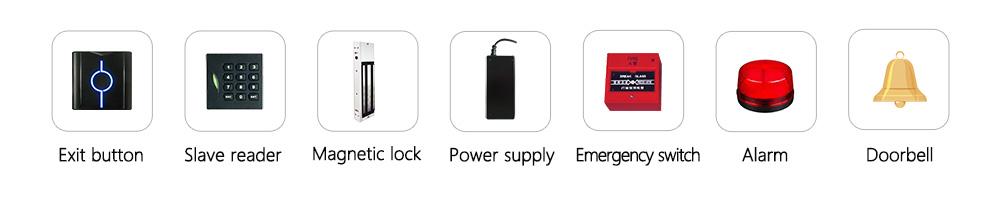

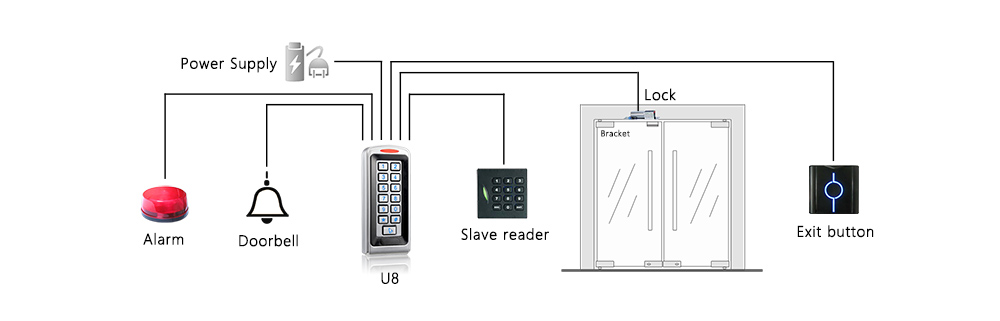

♦ Access control interfaces for electric lock, door sensor, alarm, exit button and doorbell.
♦ Lock control delay, Unlock duration, Alarm delay are programmable from 0 to 254 seconds.
♦ Support Tamper alarm, door sensor alarm, error operation alarm.
♦ Slim, elegant and rugged design.
♦ With wiegand input and output signal.
|
Model |
U8 |
|
User capacity |
2000 |
|
LED Indicator |
Green, Red |
|
Keypad |
White backlit, Numeric keys 0~9, Function keys *, #, Bell |
|
Verification Type |
Card, PIN, Card+PIN |
|
Built-in Card Reader |
125Khz EM card (Optional Mifare card) |
|
Reading distance |
3-6 CM |
|
Access Control Interface |
Electric lock, Door sensor, Alarm, Exit button and Doorbell |
|
Wiegand format |
Wiegand26/34 input & output |
|
Power supply |
12VDC-24VDC |
|
Operating Temperature |
-20℃ ~ 60℃ |
|
Operating Humidity |
5%-95% |
|
Specification(W*H*D) |
58*135*22mm |
|
Weight |
G.W.: 700g, N.W.:550g |
|
Ingress Protection Rate |
IP68 |
